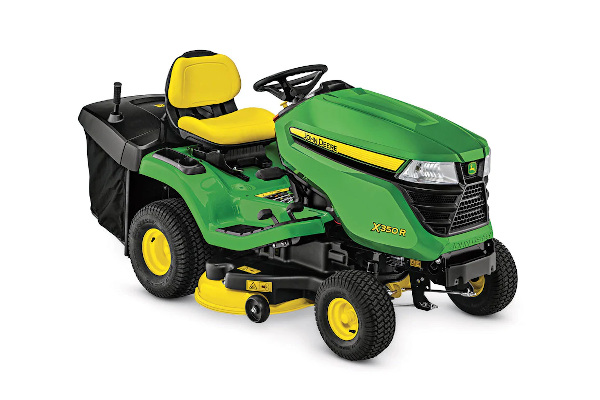

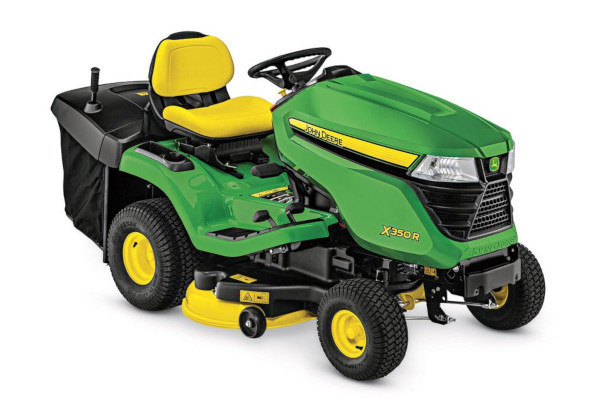

John Deere X350R Tractor with 42-inch Rear-Discharge Deck

Double tap to zoom



Features

  • Engine is smooth-running and reliable V-twin air-cooled design
  • 42-in. (107-cm) Rear-Discharge Rear-Collect Mower Deck cuts clean
  • Rear hopper has large capacity and is easy to empty
  • Four-year or 300-hour bumper-to-bumper warranty is standard
  • Snow removal is a strength of lawn tractors
  • Steering is low-effort sector and pinion system
  • Integrated hydrostatic transaxle is efficient
  • Controls and display functions are easy to identify and convenient to use
  • Frame is reliable heavy-duty welded steel
  • Modern styling is eye-appealing and functional
  • Operator station is comfortable and convenient
  • Serviceability convenience is built in
  • MowerPlus™ app helps maintain the tractor and lawn

Specifications

Key Specs

Engine power 21.5 hp
16 kW
Oil change No-tools oil drain with replaceable filter
Engine manufacturer/model FR651V
Transaxle type K46 hydrostatic integrated with transaxle
Transaxle control Twin Touch™ pedals
Rear tires 20x10-8
Lift system type Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)
Cutting width 42 in.
107 cm
U.S. warranty 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power 21.5 hp
16 kW
Displacement 44.3 cu in.
726 cc
Manufacturer/model FR651V
Type Overhead valve, full-pressure lube, oil filter
Cylinders V-twin, cast-iron liners
Governor Mechanical
Choke/speed control Separate levers, automatic choke return
Cooling method Air
Air cleaner Dry, replaceable
Oil change No-tools oil drain with replaceable filter

Fuel system

Type Gasoline
Fuel delivery Pulse pump, carburetor
Fuel gauge Low fuel indicator
Fuel tank location Rear
Fuel fill opening On left fender, 3 in.
7.6 cm
Fuel tank capacity 2 U.S. gal.
7.6 L

Electrical system

Battery 12 V
340 CCA
Charging system Flywheel alternator, regulated, 12 amp
Engine starter Bendix
Hourmeter Yes
Headlights Two standard, incandescent, 27 W
Taillights or reflector No
Backup lights No
Rear work lights No
12-V outlet Optional

Transaxle

Type K46 hydrostatic integrated with transaxle
Control Twin Touch™ pedals
Cruise control Yes, button on dash
Oil cooler Fins and fan on transaxle
Oil filter Internal, not replaceable
Differential lock No
Forward speed 0-5.3 mph
0-8.5 km/h
Reverse speed 0-4 mph
0-6.4 km/h
Brakes Internal wet disc

Chassis

Frame Welded heavy-duty
Primer/paint E-coat/powder
Weight bracket Optional front
Receiver hitch No
Front axle Cast iron front axle, front wheel ball bearings
Spindle bushings No
Front tires 15x6-6
Rear tires 20x10-8
Hood material Fully enclosed, molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Sure-grip rubber
Storage Yes, under seat and covered toolbox
Service interval decal Yes
Fender handles/grips No
Cup holder Yes
Equipment mounting Yes, front

Steering

Type Manual, sector and pinion
Four-wheel steer Not available on this model
Steering wheel Large, 14 in.
35.6 cm
Tilt steering wheel No
Turning radius 16.5 in.
42 cm
Uncut circle radius Right, 23 in.
58.4 cm
Left 28 in.
71.1 cm

Seat

Type Open-back design with grasp
Seat back height 15 in.
38 cm
Armrests No
Fore-aft adjustment While seated, slide rail, 15-position, 6.6 in.
17 cm
Seat suspension Tilt, two coil springs, three-position no-tools adjustment for operator weight

Lift system

Type Foot pedal with non-adjustable spring assist, optional adjustable spring assist kit available (required for snow blower use)
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-9.5 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes

Mower deck

Type Rear discharge, rear collect, mulch
Cutting width 42 in.
107 cm
Construction Stamped steel deck shell
Mower deck material 11 gauge
0.12 in.
3 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch, in-line belt
Mower wheels Three
Mower wheel adjustment Four-position, tool required
Mower level adjustment Exact Adjust ports and onboard deck-leveling gauge

Mower attachability

Type Slide under tractor
Front draft arms Attached with spring pins at two points
Rear draft arms Two pins and spring clips
Mower wheels rotate No
Drive system Dual belt

Safety

Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes

Buyer's notes

Notes Includes rear hopper and mulch plug, optional rear deflector available
Fully enclosed, molded-in color material reduces sound, will not rust or dent
Durable E-coat primer and powder-paint finish
Warranty 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional equipment

Mowers Rear discharge, rear collect (standard), 42 in.
107 cm
Rear bagger Rear hopper, 8.5 bu
300 L
Front thatcher 38, 46, 54 in.
96.5, 116.8, 137.2 cm
Front blade 44 in.
111.8 cm
Snow blower Two-stage, 44 in.
111.8 cm
Sprayer Tow-behind, 15 U.S. gal.
56.8 L
Tow-behind, 25 U.S. gal.
94.6 L
Spreader Tow-behind, 125 lb
57.7 kg
Tow-behind, 175 lb
79.4 kg
Front bumper Styled bumper option
Brush guard Yes
Grass striping Lawn striping kit
Tractor shovel 40 in.
101.6 cm
Front loader
Other equipment
Tow-behind tools 16

Dimensions

Height 46 in.
117 cm
Overall length 99 in.
251.4 cm
Wheelbase 49.4 in.
125.5 cm
Width with mower 43.8 in.
111 cm
Width without mower 38 in.
96.5 cm
Weight Mower, no fuel: 646 lb
293 kg
