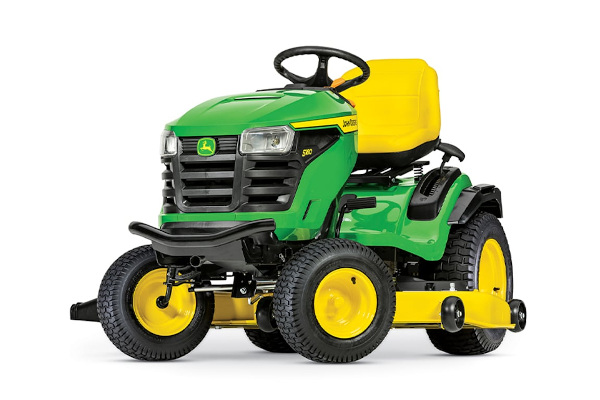

John Deere S180
Double tap to zoom
- Engine is powerful and smooth-running V-twin design
- John Deere Easy Change™ 30-second oil change system
- Full-featured engine is more reliable and lasts longer
- Frame made of full-length welded steel for reliability
- Snow removal is a strength of lawn tractors
- Hydrostatic transmission gives an infinite choice of ground speeds
- Operator station designed for comfortable operation
- Instruments and controls are easy to find and convenient to use
- Serviceability is convenient with easy-open hood
- The MowerPlus™ app helps maintain the tractor and lawn
- The Edge™ cutting system gives superior performance
- Two-year or 120-hour bumper-to-bumper warranty is included
|Engine power||24 hp
|Oil change||John Deere Easy Change™ 30-second oil change system|
|Engine manufacturer/model||44U877 (M44)|
|Transaxle type||K46 heavy-duty hydrostatic, two-wheel drive|
|Transaxle control||Side-by-side pedals|
|Lift system type||Spring-assisted hand-grip lever|
|Cutting width||Edge™ mower deck, 54 in.
|U.S. warranty||2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)|
|Displacement||44.2 cu in.
|Type||Overhead valve, full-pressure lube, oil filter|
|Cylinders||V-twin - extended life series (ELS)|
|Choke/speed control||Single lever with spring-return on choke|
|Air cleaner||Cartridge with prefilter|
|Oil change||John Deere Easy Change 30-second oil change system|
|Fuel delivery||Pulse pump and carburetor|
|Fuel gauge||Easy-read on dash|
|Fuel tank location||Rear|
|Fuel fill opening||Center, 1.75 in.
|Fuel tank capacity||2.4 U.S. gal.
|Charging system||Regulated, 14 amp|
|Engine starter||Bendix type|
|Headlights||Two standard, incandescent|
|Taillights or reflector||Reflectors|
|Rear work lights||No|
|Type||Hydrostatic, 2-wheel drive|
|Oil cooler||Fins and fan on transaxle|
|Oil filter||Yes, not serviceable|
|Forward speed||0-5.5 mph
|Reverse speed||0-3.2 mph
|Brakes||Internal wet disk|
|Frame||Full-length welded steel|
|Weight bracket||Optional rear|
|Front axle||Cast iron front axle, front wheel sealed ball bearings|
|Hood material||Molded-in color material reduces sound, will not rust or dent|
|Fender deck material||Stamped steel|
|Floor mats||Yes, with debris removing channels|
|Storage||Storage tray with cover|
|Service interval decal||Yes|
|Equipment mounting||CargO Mount™ system|
|Type||Sector and pinion with single drag link and tie rod|
|Four-wheel steer||Not available on this model|
|Steering wheel||Deluxe, diameter - 14 in.
|Tilt steering wheel||No|
|Turning radius||18 in.
|Uncut circle radius||18 in.
|Type||One piece with lumbar adjustment|
|Seat back height||15 in.
|Fore-aft adjustment||While seated, 5.5 in.
|Seat suspension||Tilt, two coil springs|
|Type||Spring-assisted hand-grip lever|
|Mower cut height||13 positions, 1-4 in.
|Cut height increments||0.25 in.
|Preset cut height||No|
|Cutting width||Edge™ mower deck, 54 in.
|Construction||Stamped steel deck shell|
|Mower deck material||Steel, 11 gauge
|Mower wash port||Yes|
|Mower drive system||Electric power take-off (PTO) clutch|
|Mower wheel adjustment||One bolt|
|Mower level adjustment||Easy-level deck|
|Type||Slide under tractor|
|Front draft arms||One spring clip|
|Rear draft arms||Two spring clips|
|Mower wheels rotate||No|
|Drive system||Single belt|
|Meets ANSI standard||Yes|
|Meets OPEI standard||Yes|
|Backup protection||Reverse Implement Option (RIO)|
|Notes||Molded-in color material reduces sound, will not rust or dent
Durable primer and powder paint finish
Large, 14-in. (36-cm) steering wheel for more comfortable operation
John Deere Easy Change 30-second oil change system
|Warranty||2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)|
|Rear bagger||2-bag, 6.5 bu
|Powered material collection||Power Flow™ blower|
|Mulching system||High performance plug|
|Front blade||46 in.
|Snow blower||Two-stage, 44 in.
|Sprayer||Tow-behind, 15 U.S. gal.
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
|Spreader||Tow-behind only, 125-175 lb
|Weather protection||Weather enclosure|
|Sun canopy||Sun canopy|
|Rear receiver hitch|
|Bucket holder||Yes, single bucket|
|Grass striping||Lawn striping kit|
|Overall length||75.3 in.
|Width with mower||67 in.
|Width with mower (deflector raised for storage)||57.1 in.
|Weight||Mower, no fuel, 526 lb
