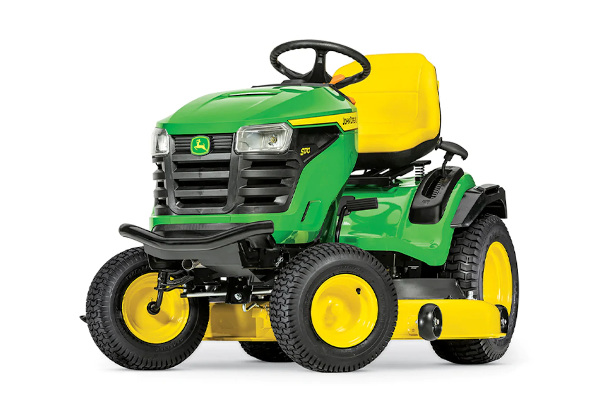

John Deere S170

Double tap to zoom



Features

  • Engine is powerful and smooth-running V-twin design
  • John Deere Easy Change™ 30-second oil change system
  • Full-featured engine is more reliable and lasts longer
  • Frame made of full-length welded steel for reliability
  • Snow removal is a strength of lawn tractors
  • Hydrostatic transmission gives an infinite choice of ground speeds
  • Operator station designed for comfortable operation
  • Instruments and controls are easy to find and convenient to use
  • Serviceability is convenient with easy-open hood
  • The MowerPlus™ app helps maintain the tractor and lawn
  • The Edge™ cutting system gives superior performance
  • Two-year or 120-hour bumper-to-bumper warranty is included

Specifications

Key Specs

Engine power 24 hp
17.9 kW
Oil change John Deere Easy Change™ 30-second oil change system
Engine manufacturer/model 44U877 (M44)
Transaxle type K46 heavy-duty hydrostatic, two-wheel drive
Transaxle control Side-by-side pedals
Rear tires 22x9.5-12
Lift system type Spring-assisted hand-grip lever
Cutting width Edge™ mower deck, 48 in.
122 cm
U.S. warranty 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Engine

Power 24 hp
17.9 kW
Displacement 44.2 cu in.
724 cc
Manufacturer/model 44U877 (M44)
Type Overhead valve, full-pressure lube, oil filter
Cylinders V-twin - extended life series (ELS)
Governor Mechanical
Choke/speed control Single lever with spring-return on choke
Cooling method Air
Air cleaner Cartridge with prefilter
Oil change John Deere Easy Change 30-second oil change system

Fuel system

Type Gasoline
Fuel delivery Pulse pump and carburetor
Fuel gauge Easy-read on dash
Fuel tank location Rear
Fuel fill opening Center, 1.75 in.
4.45 cm
Fuel tank capacity 2.4 U.S. gal.
9.1 L

Electrical system

Battery 12 V
300 CCA
Charging system Regulated, 14 amp
Engine starter Bendix type
Hourmeter Yes
Headlights Two standard, incandescent
Taillights or reflector Reflectors
Backup lights No
Rear work lights No
12-V outlet No

Transaxle

Type Hydrostatic, 2-wheel drive
Control Side-by-side pedals
Cruise control Standard
Oil cooler Fins and fan on transaxle
Oil filter Yes, not serviceable
Differential lock No
Forward speed 0-5.5 mph
0-8.9 km/h
Reverse speed 0-3.2 mph
0-5.2 km/h
Brakes Internal wet disk

Chassis

Frame Full-length welded steel
Primer/paint E-coat/powder
Weight bracket Optional rear
Receiver hitch No
Front axle Cast-iron front axle, powdered-metal front wheel bushings
Spindle bushings No
Front tires 16x6.5-8
Rear tires 22x9.5-12
Hood material Molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Yes, with debris removing channels
Storage Storage tray with cover
Service interval decal Yes
Fender handles/grips Handgrips
Cup holder Yes
Equipment mounting CargO Mount™ system

Steering

Type Sector and pinion with single drag link and tie rod
Four-wheel steer Not available on this model
Steering wheel Deluxe, diameter - 14 in.
35.6 cm
Tilt steering wheel No
Turning radius 18 in.
45.7 cm
Uncut circle radius 20 in.
50.8 cm

Seat

Type One piece with lumbar adjustment
Seat back height 15 in.
38 cm
Armrests No
Fore-aft adjustment While seated, 5.5 in.
14 cm
Seat suspension Tilt, two coil springs

Lift system

Type Spring-assisted hand-grip lever
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height No

Mower deck

Type Side discharge
Cutting width Edge™ mower deck, 48 in.
122 cm
Construction Stamped steel deck shell
Mower deck material Steel, 12 gauge
0.105 in.
2.7 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch
Mower wheels Four
Mower wheel adjustment One bolt
Mower level adjustment Easy-level deck

Mower attachability

Type Slide under tractor
Front draft arms One spring clip
Rear draft arms Two spring clips
Mower wheels rotate No
Drive system Single belt

Safety

Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes

Buyer's notes

Notes Molded-in color material reduces sound, will not rust or dent
Durable primer and powder paint finish
Large, 14-in. (36-cm) steering wheel for more comfortable operation
John Deere Easy Change 30-second oil change system
Warranty 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional equipment

Rear bagger 2-bag, 6.5 bu
229 L
Mulching system Mulch cover
Front blade 46 in.
116.8 cm
Snow blower Two-stage, 44 in.
111.8 cm
Sprayer Tow-behind, 15 U.S. gal.
56.8 L
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
94.6 L
Spreader Tow-behind only, 125-175 lb
57.7-80 kg
Front bumper Included
Weather protection Weather enclosure
Sun canopy Sun canopy
Bucket holder Yes, single bucket
Grass striping Lawn striping kit
Tow-behind tools 16

Dimensions

Height 45.7 in.
116 cm
Overall length 75.3 in.
191 cm
Wheelbase 48.9 in.
124.2 cm
Width with mower 60.8 in.
154 cm
Width with mower (deflector raised for storage) 51.7 in.
131.3 cm
Weight Mower, no fuel, 503 lb
288 kg
