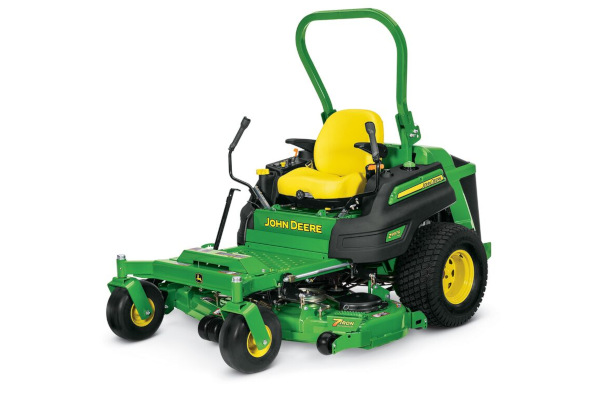

John Deere Z997R Diesel

Double tap to zoom



Features

Heavy-duty frame provides strength and durability

The durability features of the frame are as follows:

  • Heavy-duty, thick-gauge steel channel mainframe for strength and durability
  • Cast I-beam caster arms to handle the beating and pounding professional mowers receive
  • Wide-open access for maintenance and cleaning
Durable cast-iron rear bumper provides protection

A cast-iron rear bumper is provided on the machine for rear protection. It also adds weight to give great hillside performance.

A rear hitch can be added to a 10-gauge, 0.135-in. (3.4-mm) steel bumper for towing purposes. ZTrak™ Z997R Mowers can tow up to 400 lb (181 kg).

ROPS stabilizer device

Stabilizers reduce the amount of movement and noise in the ROPS.

Roll-Gard™ rollover protective structure for operator safety

The foldable two-post rollover protective structure (ROPS) and seat belt are standard equipment to protect the operator in the event of machine tip-over. The ROPS structure meets U.S. Occupation Safety and Health Administration (OSHA) standard 1928.51. Retractable seat belts are within easy reach of the operator, for use when operating equipment with the ROPS up.

ROPS are foldable to allow trimming, such as under trees or bushes:

  • To fold, remove two pins and rotate the top of the ROPS.
  • Adjustment can be made from the operator's seat.
  • ROPS must be in the upright and locked position when low clearance is not required; the use of seat belts is recommended when operating the equipment with ROPS in the upright position.

The folding ROPS performance is certified at the date of manufacture according to the following:

  • USA OSHA: 1928.51 for North America and certification for the worldwide sales under OSHA.

Michelin® X® Tweel® Turf airless radial tire technology option for a smoother ride and more uptime

John Deere leads the commercial zero-turn mower industry with use of the Michelin X Tweel Turf technology.

Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides a smoother ride for the operator and additional advantages to John Deere owners.

Advantages of the Michelin X Tweel Turf include:

  • Mowing performance is improved.
    • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires, to give a smoother ride.
    • Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
    • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires, to give a smoother ride.
    • Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
    • More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
  • Uptime is improved.
    • The exclusive technology eliminates downtime and associated cost due to flat or damaged tires. Punctures and sidewall damage no longer result in downtime.
  • Cost of operation is reduced.
    • Cost of repairs and maintenance is reduced. One single unit replaces the current tire, wheel, and valve assembly. There is no need for complex tire-mounting equipment.
    • No need to spend time checking and optimizing tire pressure.
    • The need to purchase and stock plug kits and spare tires is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
    • The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.



Heavy-duty construction provides the ultimate in performance and reliable operation:

  • High-strength poly-resin spokes carry the load.
  • Four-hole, heavy-duty steel hub easily bolts onto any Z997R ZTrak Mower.
  • Deep, open-tread design provides excellent cleaning and traction.
  • Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.
Tires deliver exceptional traction, maneuverability, and reliability

The ZTrak Z997R Mower is equipped with 15x6-6 flat free front caster tires that provide:

  • Excellent reliability and uptime
  • Low center of gravity to increase hillside mowing capability
  • Caster wheels and caster wheel towers with sealed bearings for long life and easy steering
  • Offset front caster wheels to help improve the inside corner-trim performance and reduce between-blade striping

A choice of rear wheel options is available for factory installation:

  • 26x12-12 4 PR pneumatic drive tires in base equipment for excellent traction, flotation, and curb climbing
  • 26x12-12 Michelin X Tweel Turf airless radial tire technology option for a smoother ride and more uptime
Caster wheels

The 15x6-6 smooth-design flat-free front caster wheels provide excellent durability, flotation, and curb climbing.

A wide stance increases hillside mowing capability.

Michelin, X, and Tweel are trademarks of Michelin North America, Inc.

Drive tires and caster wheels sized for proper weight distribution and traction

The Z997R comes with 26x12-12, square-shoulder, 4 PR turf drive tires as standard equipment.

Powerful diesel engine for increased performance

The Z997R is powered by a 3-cylinder, liquid-cooled diesel engine with a gross 37.4 hp (27.5 kW) that meets U.S. Environmental Protection Agency (EPA) Final Tier 4 emission standards. The engine achieves Final Tier 4 compliance by using a diesel oxidation catalyst with diesel particulate filter (DOC/DPF) system.

The three-cylinder diesel engine features low noise levels, superior fuel economy, and a high torque reserve that provides plenty of power and performance.

Key features of the engine include:

  • Economical, cast-in block cylinder design gives good cooling and long life.
  • Liquid-cooled design provides more consistent operating temperatures than air-cooled.
  • Direct fuel injection is provided.
    • Injects fuel directly on top of pistons for more efficient combustion
    • Develops more horsepower per gallon of fuel
    • Improves starting
  • Aluminum alloy pistons with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat-transfer characteristics.
    • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by fuel and noise from the piston slap
    • Higher top rings on the piston and a thinner head gasket greatly reduce the volume of unburned waste and increase combustion efficiency
  • Timing gears and injector drive gears utilize helical profile gears to help lower engine noise.
    • Gear teeth have a newly designed ''roll-off'' profile, giving almost no clash, no noise, and no backlash
  • Fuel filter with replaceable element is provided.
  • Full-pressure intake manifold provides quick starts in temperatures down to 0°F (-18°C).
  • Auto-bleed fuel system gives extra convenience.
    • No need to prime the system if the unit runs out of fuel; the system will self-prime the injection pump, lines and injectors, providing fast fuel recovery
  • Key start and shutoff eliminates fuel shut-off knob; electric solenoid shuts fuel supply off immediately when key is turned off.
  • See-through coolant recovery tank permits operator to check coolant level without removing radiator cap.
  • Sealed radiator compartment keeps trash and debris on outside of hood.
  • Dual-element, dry-type air cleaner with safety element and air service indicator is provided.
    • Dual-element design for added engine protection
    • Easy to service
    • Completely sealed for effective cleaning and 90 to 95 percent of dirt ejected before it reaches the paper element
    • Secondary safety element for additional filtering
    • Air-restriction indicator to let operator know when the filter needs servicing
  • Full-pressure lubrication with full-flow filter lengthens engine life.
    • Engine wear reduced by ensuring proper lubrication, even when operating on hillsides or uneven terrain
    • Oil filter helps keep oil clean for increased engine life
  • Automotive-type alternator (75 amp) provides plenty of charge to the battery.
  • Rear-mounted, covered radiator and fan keeps noise away from the operator and is easy to service.
  • Isolated engine mounting reduces engine vibration at operator's station for more comfortable operation.
Air cleaner filters out dust to extend engine life

The ZTrak™ Z997R Diesel Mower is equipped with a dual-element, canister-style air filter that is easily accessible from the rear of the machine without tools.

  • Filtration system pulls clean air from above the engine, in turn filtering out the dust that can damage an engine over time.
  • Filters are easy to change when required.
  • Pre-cleaner provides extra protection against contamination in dusty and dirty applications.
12-U.S. gal. (45.4-L) capacity fuel tank allows the operator to mow for a full day without refueling

The Z997R Diesel ZTrak™ Mower is equipped with a single fuel tank, providing the following:

  • 12-U.S. gal. (45.4-L) capacity allows the operator to mow for a full day without refueling.
  • Large filler neck makes for easier refueling.
  • Standard fuel gauge is provided.
  • Top fuel draw provides added safety by reducing the chance fuel will leak out.

NOTE: The fill level is 1 in. (25 mm) below the bottom of the filler neck.

Quality drive system provides longer life and less maintenance

The hydrostatic drive features a Kanzaki® DUP 17SB dual-unitized hydraulic pump. This dual pump, in a single housing, provides longer life and less maintenance than competitive units.

The pump features a shaft-driven fan for added cooling and longer component life. The swash-plate bearings are roller-type versus ball-type bearings for a longer overall pump life.

The transmission module integrates the dual pumps and steering valves in one single housing. The pump is shaft-driven from the engine. An isolator ensures reduced vibration between the engine and the transmission module.

Two wheel motors are installed on the chassis to directly transfer power to both wheels. Commercial-grade, heavy-duty TG0310 18.9-cu in. (310-cc) wheel motors from Parker Ross, part of the Hydraulic Pump & Motor Division of Parker Hannifin®, are also important components of the overall drive system efficiency.

Rigid hydraulic lines are installed between the hydraulic module and wheel motors for long life.

Kanzaki is a trademark of Kanzaki Kokyukoki Manufacturing Company. Parker Hannifin is a trademark of Parker Intangibles, LLC.

Standard operator comfort and convenience package for ease of use

The Z997R Diesel ZTrak™ Mower is ergonomically designed to give the operator an enjoyable and comfortable ride while increasing productivity.

Two-lever hydrostatic drive control
  • Commercial cutter can select the ground speed and direction control simply by moving levers forward or in reverse.
  • Positive neutral lock position for levers provides added safety.
  • Wide-bend steering levers swing out easily for entry and exit from the operator platform.

The comfort and convenience package includes large, ergonomically angled control levers with specially padded grips and built-in electronic controls to raise or lower the mower deck and disengage the mower blades.

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

Easy to engage park-brake lever
  • Positive park position allows the operator to park on hillsides and lock the park brake during
    trailer transport.
  • Park brake automatically disengages the machine during panic stop, for added safety.

Deluxe comfort seat is fully adjustable and includes ComfortGlide™ fore/aft suspension

The deluxe comfort professional-grade seat is included in base equipment. It provides the operator with an enjoyable ride by allowing the operator the ability to adjust the seat to their preference. It includes:

  • 24-in. (60.9-cm) high-back seat
  • Suspension-reaction dial that adjusts vertical suspension for operator weight and a firm or soft ride
  • Adjustable armrests
  • Adjustable back angle
  • ComfortGlide 2-in. (50.8-mm) fore/aft suspension to absorb bumps
  • Vibration reduction
  • 3-in. (7.6-cm) fore-aft adjustment while operator is seated
  • Retractable seatbelt

ComfortGlide fore/aft suspension gives superior ride comfort over uneven areas:

  • Seat can travel up to 2 in. (50.8 mm) fore and aft to absorb bumps for a significant enhancement to ride comfort.
  • Control lever provides the ability to easily lock out fore/aft suspension movement if desired.
  • One lever has three functions.
    • Slide seat forward and back 3 in. (10.2 cm) to allow the operator the ability to choose the leg room needed
    • Activate Comfort Glide fore/aft seat suspension
    • Lock out Comfort Glide fore/aft seat suspension

Mower deck height-of-cut adjustment is easy to use

Single-touch deck lift system is best in class:

  • No tool required for adjustments
  • Dial-in knob used in conjunction with push button to change the height of cut
  • Easy-to-use design for increased productivity by allowing change of cutting height from the seat

The push button (A) on the left motion control lever raises the mower deck. The push button (B) on the right-hand control lever shuts off the power take-off (PTO).

Once the PTO has been shut off using the button, the PTO switch must be pushed down and pulled up again to engage the PTO.

Easily accessed daily service points mean less maintenance time and more working time

Service components are easy to see and access:

  • Open engine compartment allows full access to engine components and service points.
  • Engine heat is kept away from the operator.
  • Flip-up seat allows easy access to the hydraulic system.
  • Flip-out floor panel allows easy access to deck spindles.
Hood latch and hood pivots

Hood has one central over-center type latch.



The hood pivots to make the hood easier to remove and install for ease of servicing the engine.

Three-year, bumper-to-bumper warranty

E and M Series three-year, 1200-hour bumper-to-bumper warranty

An exclusive two-year, unlimited hour/three-year, 1200-hour (whichever comes first) bumper-to-bumper warranty is standard for all John Deere E and M Series Mowers. The warranty is best in its class and places John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

NOTE: 36 months or 1200 hours, whichever comes first. For the first 24 months, there is no hour limitation.

R Series three-year, 1500-hour bumper-to-bumper warranty

An exclusive two-year, unlimited hour/three-year, 1500-hour (whichever comes first) bumper-to-bumper warranty is standard on all John Deere R Series mowers. The warranty is best in the industry and puts John Deere at the forefront of commercial mowing. It is also hassle free, with one company handling all of the paperwork.

NOTE: 36 months or 1500 hours, whichever comes first. For the first 24 months, there is no hour limitation.

Mower decks are safety certified

Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.

Four mower deck options for the Z997R give superior performance in every application

There are four mower-deck options available for the Z997R Diesel ZTrak™ Mower:

  • The 60-in. (152-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming.
  • The 60-in. (152-cm) 7-Iron PRO Mulch On Demand mower deck can be converted from a wide-open, side-discharge mode to a fully chambered mulching mode with a single move of a lever.
  • The 60-in. (152-cm) rear-discharge mower deck is fabricated from 7-gauge, 0.179-in. (4.5-mm) steel for added deck strength and long life. It is ideally suited for areas where people are present.
  • The 72-in. (183-cm) 7-Iron PRO side-discharge deck is suited to a variety of mowing jobs, including trimming and grooming on larger properties.
Spindle housings are made of ductile cast iron for extra durability

On every commercial mower deck, there are three 1-in. (25-mm) spindles that are cold-forged and heat-treated for strength. Spindles are supported by precision ball bearings that provide great performance and reliability.

The blade spindles are designed for many hours of trouble-free operation:

  • The spindle housings are made of ductile cast iron and have a gusseted design that puts the reinforcement where it is needed.
  • Ductile cast-iron material provides increased impact strength.
  • Strength of cast iron protects against damage from blade impacts.
  • Grease fitting is mounted at the top for easy access.
  • Grease pressure-relief valve minimizes seal damage from overfilling with grease and keeps debris from entering housing.
  • The 8-in. (20.3-cm) diameter housing distributes loads and impacts to minimize deck-shell damage.
  • Spindle assembly can be rebuilt.
60-in. (152-cm) 7-Iron PRO mower deck

Features include:

  • Higher blade tip speed - 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
  • Front baffle is designed to better manage airflow and control clippings.
  • Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
  • Spindle-pocket reinforcement for even greater structural durability.
  • A raised discharge chute provides even clipping distribution.
  • 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
  • 3-spindle design provides a smooth, even cut.
  • Plastic discharge deflector reduces damage to foliage and resists bending.
  • Formed, steel-deck design is stamped from a single sheet of steel to eliminate corners where grass can collect.
  • Deep deck gives increased vacuum action that reduces dropped clippings.
  • Shaft drive from engine to mower gives excellent reliability.
  • Belt drive efficiently transfers power from gearbox to spindles.
  • Grease fittings are greased from the top for easy access.
  • Quick-change cutting-height adjustment is easy to use.
  • Tricycler mulching kits are available.
  • Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.



  60-in. (152-cm)
Side-Discharge
60-in. (152-cm)
Side-Discharge Mulch On Demand
60-in. (152-cm)
Rear-Discharge

72-in. (183-cm)
Side-Discharge

Mower type 7-Iron PRO - stamped deck 7-Iron PRO - stamped deck 7-gauge fabricated deck 7-Iron PRO - stamped deck
Mower compatibility:
     Discharge Side Side Rear

Side

     Mulching capability Optional field-installed kit Standard Mulch On Demand included Not available Optional field-installed kit
     Cut-height range

1.5-5 in. (3.8-12.7 cm)
0.25 in. (1.3-cm) increments

1.5-5 in. (3.8-12.7 cm)
0.25 in. (1.3-cm) increments

1.5-5 in. (3.8-12.7 cm)
0.25 in. (1.3-cm) increments

1.5-5 in. (3.8-12.7 cm)
0.25 in. (1.3-cm) increments

     Cutting width 60 in. (152 cm) 60 in. (152 cm) 60 in. (152 cm) 72 in. (183 cm)
     Height-of-cut adjustment Turning knob with foot assist Turning knob with foot assist Turning knob with foot assist Turning knob with foot assist
High lift blades:
     Blade length 21 in. (53 cm) 21 in. (53 cm) 21 in. (53 cm) 25 in. (64 cm)
     Blade width 3 in. (7.6 cm) 3 in. (7.6 cm) 3 in. (7.6 cm) 3 in. (7.6 cm)
     Blade thickness 0.25 in. (6.35 mm) 0.25 in. (6.35 mm) 0.25 in. (6.35 mm) 0.25 in. (6.35 mm)
     Blade tip speed 17,480 fpm (5.3 km/m) 17,480 fpm (5.3 km/m) 17,480 fpm (5.3 km/m) 17,500 fpm (5.3 km/m)
     Number of blades Three Three Three Three
Blade spindles:
     Bearings Grade=ABEC-1 Grade=ABEC-1 Grade=ABEC-1 Grade=ABEC-1
     Spindles Cold-forged and heat-treated Cold-forged and heat-treated Cold-forged and heat-treated Cold-forged and heat-treated
     Spindle housings Ductile cast-iron Ductile cast-iron Ductile cast-iron Ductile cast-iron
Wheels:
     Front anti-scalp rollers Standard Standard Standard Standard
     Rear anti-scalp rollers Standard Standard Standard

Standard

Deck construction One-piece stamped steel One-piece stamped steel Fabricated steel One-piece stamped steel
Deck thickness 7-gauge steel
0.179 in. (4.5 mm)

7-gauge steel
0.179 in. (4.5 mm)

7-gauge steel
0.179 in. (4.5 mm), top and side

7-gauge steel
0.179 in. (4.5 mm)

NOTE: The 60-in. (152-cm) 7-Iron PRO Mulch On Demand mower deck is not available in Australia/New Zealand.

Mower decks are safety certified

Mowers decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.

72-in. (183-cm) 7-Iron PRO mower deck

Features include:

  • Higher blade tip speed - 18,000 fpm (5486 m/min) gives more blade strikes per distance of forward travel.
  • Front baffle is designed to manage airflow and control clippings.
  • Spindle pocket reinforcement gives greater structural durability.
  • Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
  • A raised discharge chute provides even clipping distribution.
  • 7-gauge, 0.179-in. (4.5-mm) steel construction gives commercial durability.
  • 3-spindle design gives a smooth, even cut.
  • Plastic discharge deflector reduces damage to foliage and resists bending.
  • Formed, steel-deck design is stamped from a single sheet of steel to eliminate corners where grass can collect.
  • Deep deck gives increased vacuum action that reduces dropped clippings.
  • Shaft drive from engine to mower gives excellent reliability.
  • Belt drive efficiently transfers power from gearbox to spindles.
  • Grease fittings are greased from the top for easy access.
  • Quick-change cutting-height adjustment is easy to use.
  • Tricycler mulching kits are available.
  • Blade overlap of 1.57 in. (40 mm), nearly 0.79 in. (20 mm) greater than previous decks, reduces the number of missed grass blades.
60-in. (152-cm) 7-Iron PRO Mulch On Demand Mower Deck

Key features of the 7-Iron PRO Mulch On Demand mower deck:

  • Deck can be converted from a wide-open side discharge mode to a fully chambered mulching mode with a single move of a lever.
  • Deck is stamped from 7-gauge, 0.179-in. (4.5-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
  • Significantly fewer welds on the deck shell to wear or break; it is stamped from a single sheet of steel rather than multiple fabrications. Anti-skid step on the deck provides easy machine mounting.
  • Higher blade tip speed than many competitors - 18,000 fpm (5486 m/min) for more blade cuts per inch mowed.
  • The rounded corners of the stamped deck help distribute impact stress to reduce the potential of damage when the mower contacts trees, rocks, curbs, and other fixed obstacles.
  • A deep-deck design of 5.5 in. (14 cm) delivers excellent airflow so material can be processed quickly and efficiently.
  • The wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
  • 1-in. (25-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings, providing reliability and performance; ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.
  • The front edge is raised above the blade plane to allow even cutting of tall grass and reinforced with a square bar for durability. The front baffle has been redesigned to better manage airflow and control clippings.
  • Dual-captured anti-scalp wheels provide deck flotation over even the toughest terrain.
60-in. (152-cm) rear-discharge mower deck

The 60-in. (152-cm) rear-discharge mower is ideally suited for:

  • Areas where people are present
    • Schools
    • Parks
    • Playgrounds
    • Traffic areas (city boulevards, roadsides, etc.)
  • Conditions and application areas with long grass and weeds where wide dispersal of grass (park areas, roadsides, etc.) is not a concern

Some government bids specify that the mower is equipped with a rear discharge deck:

  • Deck is fabricated from 7-gauge, 0.179-in. (4.5-mm) steel for added deck strength and long life.
  • 0.75-in. (1.9-cm) solid steel bar is welded to the mower deck perimeter for additional strength.
  • Deep-deck design increases airflow so more material can be processed.
  • Operator can trim with either side.
  • Unique baffling system that is designed to reduce clumping and windrowing usually associated with rear-discharge mowers.
  • 1-in. to 5-in. (2.54-cm to 12.7-cm) cutting heights, in 0.5-in. (1.3-cm) increments, allow the operator to match mowing conditions.
  • Gauge wheels, rollers, or side-mounted skid shoes lift the deck over uneven surfaces for a well-groomed appearance.
  • Spindles can be greased without removing belt shields.
  • 1-in. (25-mm) cold-forged spindles are reliable.
  • Heat-treating of the spindles provides additional strength.
  • Ductile cast-iron blade-spindle housings have a gusseted design for extra reinforcement.

Specifications

Key Specs

Engine Manufacturer/model 3TNV88C
Engine Power Gross at 3,000 rpm, PS: 37.4 hp
27.5 kW
Fuel tank capacity 12 U.S. gal.
45.4 L
Mower deck Size Side discharge, Mulch On Demand™, rear discharge, 60 in.
152 cm
Side discharge, 72 in.
183 cm
Blade tip speed Approximately 18,000 fpm
5,486 m/min
Transmission Hydrostatic
Speed range 0-11.5 mph
0-18.5 km/h
Drive wheels 26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel™ turf tires
Caster wheels 15x6-6 flat free
Warranty 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.

Engine

Manufacturer/Model 3TNV88C
Power Gross at 3,000 rpm, PS: 37.4 hp
27.5 kW
Displacement 100.2 cu in.
1,642 cc
Cylinders Three
Crankcase capacity 3.8 U.S. qt
3.6 L
Oil filter Full flow, replaceable, spin-on type
Lubrication Full pressure
Cooling Liquid
Air cleaner Pre-cleaner
Yes
Heavy-duty canister, dry type with safety element and air-restriction indicator

Fuel system

Fuel type Diesel or Biodiesel (up to B20)
Fuel consumption
Fuel tank capacity 12 U.S. gal.
45.4 L
Fuel tank switch/shut-off valve Yes

Electrical system

Charge system 75 amp
Battery voltage 12 V
Cold cranking amp At 18 degrees C, 490 amp
Hour meter Digital multi-function display
Operator presence starting system Standard

Drivetrain

Transmission Hydrostatic
Hydraulic pumps
Wheel motors Parker Ross TG0310, 18.9 cu in.
310 cc
Travel speed Speed range
0-11.5 mph
0-18.5 km/h
Forward
0-11.5 mph
0-18.5 km/h
Reverse
0-5 mph
0-8 km/h
Speed and direction control Zero turn
Hydraulic capacity Tank capacity, 3.2 U.S. gal.
12.1 L
Hydraulic oil cooler Yes
Filter Spin-on Type

Buyer's note

Warranty 36 months or 1500 hours, whichever comes first, no hour limitation for the first 24 months.

Tires

Drive wheels 26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
Rear tires 26x12-12 square shoulder 4-ply turf, optional 26x12-12 Michelin Tweel turf tires
Load rating 4PR

Brakes

Dynamic braking Dual hand controlled levers
Park brake Caliper disc brake
Park brake actuation Hand lever

PTO

Type Hydraulic clutch
Drive Internal wet disk clutch

Mower decks

Size Side discharge, Mulch On Demand, rear discharge, 60 in.
152 cm
Side discharge, 72 in.
183 cm
Deck construction 7Iron PRO: One piece stamped steel (except for 60 in. rear discharge)
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side-discharge, Mulch On Demand, rear-discharge
Height-of-cut range Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm
Cutting width 60, 72 in.
152, 183 cm

Blades

Length 60-in. deck, 21 in.
53.3 cm
72-in. deck, 25 in.
63.5 cm
Thickness 0.25 in.
0.64 cm
Blade tip speed Approximately 18,000 fpm
5,486 m/min
Number Three

Wheels

Caster wheel type Flat free
Caster wheels 15x6-6
Front anti-scalp rollers LH, RH, Center
Rear anti-scalp rollers LH, RH, Center

Dimensions

Length 60-in. side-discharge, 96 in.
244 cm
Width 60-in. side-discharge and Mulch On Demand, 74 in.
188 cm
72-in. deck, 86 in.
218.4 cm
Height With ROPs up, 85 in.
216 cm
With ROPS down 48 in.
122 cm
Weight 60-in. side-discharge, 1,774 lb
805 kg
60-in. rear-discharge, 1,827 lb
829 kg
72-in. side-discharge, 1,841 lb
835 kg

HAVE A QUESTION?

Let us help you get moving.
