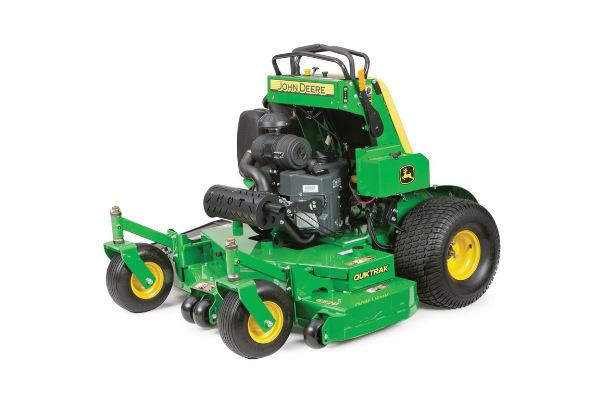

John Deere 652E

652E for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

  • Compact design for easy hauling and excellent maneuverability
  • 52-in. (132-cm) fabricated, fixed mower deck is made from 7-gauge, 0.177-in. (4.6-mm) steel for reliability and performance
  • Commercial-quality engine is reliable and provides excellent performance and life
  • Field-installed propane conversion kits for Commercial Walk-Behind Mowers, QuikTrak™ Mowers, and Commercial ZTrak™ Mowers
  • Hydrostatic drive system is reliable and easy to use
  • Controls are easy to locate and use for operator comfort and productivity
  • Safety features are built-in to protect the operator and bystanders
  • Maintenance is simple and easy to reduce time and cost

Specifications

Key Specs

Engine Manufacturer/model FX691V
Engine Power Gross at 3,600 rpm: 22 hp
16.4 kW
Fuel tank capacity 5.6 U.S. gal.
21.2 L
Mower deck Size 52 in.
132 cm
Blade tip speed 18,900 fpm
5,761 m/min
Transmission Hydrostatic
Speed range 0-9.5 mph
0-15.3 km/h
Drive wheels 20x10-8 Turf Master
Caster wheels 11x4-5
Warranty 24 months

Engine

Manufacturer/Model FX691V
Power Gorss at 3,600 rpm: 22 hp
16.4 kW
Displacement 44.3 cu in.
726 cc
Cylinders Two, V-twin
Crankcase capacity With filter, 2.2 qt
2.1 L
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Forced air
Air cleaner
Heavy-duty canister type with safety element

Fuel system

Fuel type Gasoline
Fuel consumption
Fuel tank capacity 5.6 U.S. gal.
21.2 L
Fuel tank switch/shut-off valve Yes

Electrical system

Charge system At 3,600 rpm, 20 amp
Battery voltage 12 V
Cold cranking amp
Hour meter Digital
Operator presence starting system Yes

Drivetrain

Transmission Hydrostatic
Hydraulic pumps Hydro-Gear with fans, 0.73 cu in.
12 cc
Wheel motors Hydro-Gear, 15 cu in.
246 cc
Travel speed Speed range
0-9.5 mph
0-15.3 km/h
Forward
0-9.5 mph
0-15.3 km/h
Reverse
0-5.5 mph
0-8.9 km/h
Speed and direction control Twin hand-controlled levers
Hydraulic capacity With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L
Hydraulic oil cooler
Filter Spin-on replaceable

Buyer's note

Warranty 24 months

Tires

Drive wheels 20x10-8 Turf Master
Rear tires
Load rating 4 PR

Brakes

Dynamic braking Dual hand-controlled levers
Park brake Tire engagement
Park brake actuation Hand lever

PTO

Type Electro-Magnetic with brake, 200 lb-ft
271 Nm
Drive Dual B-section V-belt with Kevlar® cord

Mower decks

Size 52 in.
132 cm
Deck construction Fabricated steel, fixed mounting
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side
Height-of-cut range Increments
0.25 in.
0.64 cm
1.5-5
3.8-12.7
Cutting width 52 in.
132 cm

Blades

Length
Thickness
Blade tip speed 18,900 fpm
5,761 m/min
Number Three

Wheels

Caster wheel type No-flat semi-pneumatic with sealed bearings
Caster wheels 11x4-5
Front anti-scalp rollers Center, left
Rear anti-scalp rollers

Dimensions

Length 66 in.
167.6 cm
Width Deflector down, 66 in.
167.6 cm
Height 47 in.
119 cm
Weight 927 lb
420.5 kg
