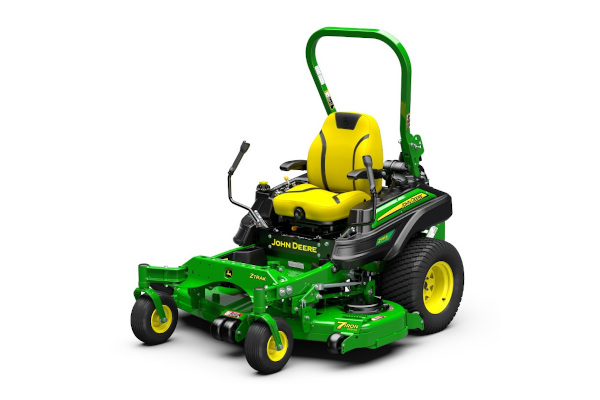

John Deere Z955R EFI

Double tap to zoom



  • Powerful 29-hp (21.6-kW) commercial-grade, electronically-fuel-injected engine delivers class-leading performance and efficiency
  • Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
  • Great productivity and lawn appearance with a Fastback™ PRO rear-discharge mower deck
  • Two seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
  • Standard comfort and convenience allows for easy deck height adjustment and power take-off (PTO) shutoff
  • Three-year, bumper-to-bumper warranty
  • Heavy-duty frame provides strength and durability
  • Durable, hydrostatic drivetrain including cross porting delivers better cooling and provides easy access
  • Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
  • Mower is easy to service with many accessible components
  • Extra reliability and long life with cast-iron blade spindle housings
  • Protective zone around the operator is provided by the rollover protective structure (ROPS)


Key Specs

Engine Manufacturer/model ECV860J EFI
Engine Power Gross at 3,600 rpm: 29 hp
21.6 kW
Fuel tank capacity 11.5 U.S. gal.
43.5 L
Mower deck Size 60 in.
152 cm
Blade tip speed Approximately 18,000 fpm
Transmission Hydrostatic
Speed range 0-12 mph
0-19.3 km/h
Drive wheels 24x12-12
Caster wheels 13x6.5-6
Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation


Manufacturer/Model ECV860J EFI
Power Gross t 3,600 rpm: 29 hp
21.6 kW
Displacement 50.3 cu in.
824 cc
Cylinders Two
Crankcase capacity With filter, 2.7 U.S. qt
2.6 L
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Air
Air cleaner Pre-cleaner
Heavy-duty canister type with safety element

Fuel system

Fuel type Gasoline
Fuel consumption Under normal conditions, load, operation, and dependent on loads and operating conditions 1.0-1.8 U.S. gal./hr
3.8-6.8 L/hr
Fuel tank capacity 11.5 U.S. gal.
43.5 L
Fuel tank switch/shut-off valve Yes

Electrical system

Charge system 20 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Standard, digital
Operator presence starting system Brake-N-Go (foot)


Transmission Hydrostatic
Hydraulic pumps
Wheel motors Tuff Torq heavy-duty integrated piston wheel motor
Travel speed Speed range
0-12 mph
0-19.3 km/h
0-12 mph
0-19.3 km/h
0-4.5 mph
0-7.2 km/h
Speed and direction control Twin levers
Hydraulic capacity 5.9 U.S. qt
5.6 L
Filter Internal, replaceable

Buyer's note

Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation


Drive wheels 24x12-12
Rear tires
Load rating 4 PR


Dynamic braking Twin levers
Park brake Internal wet disk integrated in the transmission
Park brake actuation Foot brake


Type Electro-magnetic, 225 lb-ft
305 Nm
Drive V-belt

Mower decks

Size 60 in.
152 cm
Deck construction 7-Iron™ PRO, one-piece stamped steel with reinforcements
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side
Height-of-cut range Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm
Cutting width 60 in.
152 cm


Length Varies by deck size
Thickness 0.25 in.
0.64 cm
Blade tip speed Approximately 18,000 fpm
Number Three


Caster wheel type Flat free
Caster wheels 13x6.5-6
Front anti-scalp rollers RH, center, LH
Rear anti-scalp rollers Optional


Length 84 in.
213.4 cm
Width With chute down, 74 in.
188 cm
Height With ROPS up, 73 in.
185.4 cm
With ROPS down, 47 in.
119.4 cm
Weight 1,275 to1,365 lb
578 to 619 kg

Additional information

Date collected 9-Aug-2019
