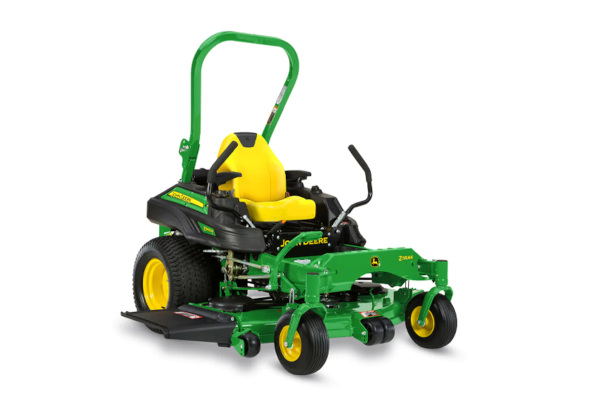

John Deere Z945M EFI

Double tap to zoom



Features

  • Powerful 27-hp (20.1-kW), commercial-grade, electronically-fuel-injected engine delivers class-leading performance and efficiency
  • Extra durability and mowing performance from 7-Iron™ PRO Side-Discharge decks pressed from a single piece of steel
  • Available Mulch On Demand™ deck
  • Three seat choices with ComfortGlide™ fore/aft suspension offer exceptional operator comfort
  • Three-year, bumper-to-bumper warranty
  • Heavy-duty frame provides strength and durability
  • Durable hydrostatic drive train that delivers better cooling and provides easy access
  • Michelin® X® Tweel® Turf airless radial tire technology for ZTrak™ Mowers eliminates downtime and reduces cost of operation
  • Mower is easy to service with many accessible components
  • Extra reliability and long life with cast-iron blade spindle housings
  • Protective zone around the operator is provided by the rollover protective structure (ROPS)

Specifications

Key Specs

Engine Manufacturer/model ECV850 EFI
Engine Power Gross at 3,600 rpm: 27 hp
20.1 kW
Fuel tank capacity 11.5 U.S. gal.
13.5 L
Mower deck Size 60 in.
152 cm
Blade tip speed Approximately 18,000 fpm
5,486 m/min
Transmission Hydrostatic
Speed range 0-10 mph
0-16.1 km/h
Drive wheels 24x12-12
Caster wheels 13x6.5-6
Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation

Engine

Manufacturer/Model ECV850 EFI
Power Gross at 3,600 rpm, 27 hp
20.1 kW
Displacement 50.3 cu in.
824 cc
Cylinders Two
Crankcase capacity With filter, 2.7 U.S. qt
2.6 L
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Air
Air cleaner Pre-cleaner
Yes
Heavy-duty canister type with safety element

Fuel system

Fuel type Gasoline
Fuel consumption Under normal conditions, load, operation, and dependent on loads and operating conditions 1.0-1.8 U.S. gal./hr
3.8-6.8 L/hr
Fuel tank capacity 11.5 U.S. gal.
43.5 L
Fuel tank switch/shut-off valve Yes

Electrical system

Charge system 20 amp
Battery voltage 12 V
Cold cranking amp 300 amp
Hour meter Standard, digital
Operator presence starting system Brake-N-Go (hand)

Drivetrain

Transmission Hydrostatic
Wheel motors Tuff Torq heavy-duty integrated piston wheel motor
Travel speed Speed range
0-10 mph
0-16.1 km/h
Forward
0-10 mph
0-16.1 km/h
Reverse
0-4.5 mph
0-7.2 km/h
Speed and direction control Twin levers
Hydraulic capacity 5.9 U.S. qt
5.6 L
Filter Internal, replaceable

Buyer's note

Warranty 36 months or 1200 hours, whichever comes first
First 24 months, no hour limitation

Tires

Drive wheels 24x12-12
Load rating 4 PR

Brakes

Dynamic braking Twin levers
Park brake Internal wet disk integrated in the transmission
Park brake actuation Hand brake

PTO

Type Electro-magnetic, 225 lb-ft
305 Nm
Drive V-belt

Mower decks

Size 60 in.
152 cm
Deck construction 7Iron PRO, one-piece stamped steel with reinforcements
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side, Mulch On Demand™ system
Height-of-cut range Increments
0.25 in.
0.64 cm
1-5.5 in.
2.54-14 cm
Cutting width 60 in.
152 cm

Blades

Length Varies by deck size
Thickness 0.25 in.
0.64 cm
Blade tip speed Approximately 18,000 fpm
5,486 m/min
Number Three

Wheels

Caster wheel type Flat free
Caster wheels 13x6.5-6
Front anti-scalp rollers RH, center, LH
Rear anti-scalp rollers Optional

Dimensions

Length 84 in.
213.4 cm
Width With chute down, 74 in.
188 cm
Height With ROPS up, 73 in.
185.4 cm
With ROPS down, 47 in.
119.4 cm
Weight 1,275 to1,365 lb
578 to 619 kg
