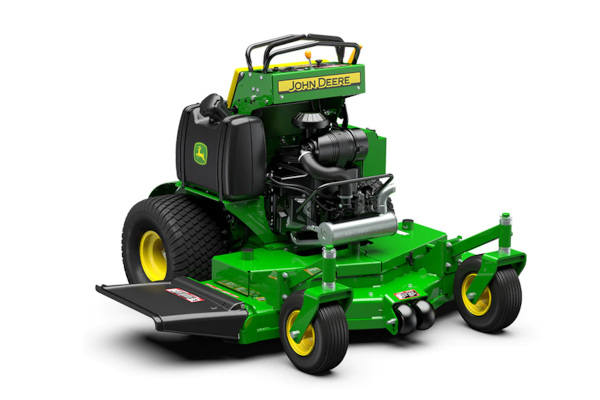

John Deere 652E
600 Series 652E
Overview:
• Compact design for easy hauling
• Hydrostatic drive system
• Commercial-quality engine
• Easy to maintain
Share This Product:
Features
- Commercial-quality engine is reliable and provides excellent performance and life
- 52-in. (132-cm) fabricated, fixed mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
- Field-installed propane conversion kits for Commercial Walk-Behind Mowers, QuikTrak™ Mowers, and Commercial ZTrak™ Mowers
Specifications
Key Specs
| Engine Manufacturer/model | FX691V |
| Engine Power | Gross at 3,600 rpm: 22 hp 16.4 kW |
| Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
| Mower deck Size | 52 in. 132 cm |
| Blade tip speed | 18,900 fpm 5,761 m/min |
| Transmission | Hydrostatic |
| Speed range | 0-9.5 mph 0-15.3 km/h |
| Drive wheels | 20x10-8 Turf Master |
| Caster wheels | 11x4-5 |
| Warranty | 24 months |
Engine
| Manufacturer/Model | FX691V |
| Power | Gorss at 3,600 rpm: 22 hp 16.4 kW |
| Displacement | 44.3 cu in. 726 cc |
| Cylinders | Two, V-twin |
| Crankcase capacity | With filter, 2.2 qt 2.1 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air |
| Air cleaner | Heavy-duty canister type with safety element |
Fuel system
| Fuel type | Gasoline |
| Fuel consumption | |
| Fuel tank capacity | 5.6 U.S. gal. 21.2 L |
| Fuel tank switch/shut-off valve | Yes |
Electrical system
| Charge system | At 3,600 rpm, 20 amp |
| Battery voltage | 12 V |
| Hour meter | Digital |
| Operator presence starting system | Yes |
Drivetrain
| Transmission | Hydrostatic |
| Hydraulic pumps | Hydro-Gear with fans, 0.73 cu in. 12 cc |
| Wheel motors | Hydro-Gear, 15 cu in. 246 cc |
| Travel speed | Speed range 0-9.5 mph 0-15.3 km/h Forward 0-9.5 mph 0-15.3 km/h Reverse 0-5.5 mph 0-8.9 km/h |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity | With filter-wet, 2.9 qt 2.7 L Dry, 5 qt 4.7 L |
| Filter | Spin-on replaceable |
Buyer's note
| Warranty | 24 months |
Tires
| Drive wheels | 20x10-8 Turf Master |
| Rear tires | |
| Load rating | 4 PR |
Brakes
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Tire engagement |
| Park brake actuation | Hand lever |
PTO
| Type | Electro-Magnetic with brake, 200 lb-ft 271 Nm |
| Drive | Dual B-section V-belt with Kevlar® cord |
Mower decks
| Size | 52 in. 132 cm |
| Deck construction | Fabricated steel, fixed mounting |
| Deck thickness | 7 gauge 0.18 in. 4.6 mm |
| Discharge | Side |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 3.8-12.7 |
| Cutting width | 52 in. 132 cm |
Blades
| Blade tip speed | 18,900 fpm 5,761 m/min |
| Number | Three |
Wheels
| Caster wheel type | No-flat semi-pneumatic with sealed bearings |
| Caster wheels | 11x4-5 |
| Front anti-scalp rollers | Center, left |
Dimensions
| Length | 66 in. 167.6 cm |
| Width | Deflector down, 66 in. 167.6 cm |
| Height | 47 in. 119 cm |
| Weight | 927 lb 420.5 kg |
Additional information
| Date collected | 07-Jun-2017 |
