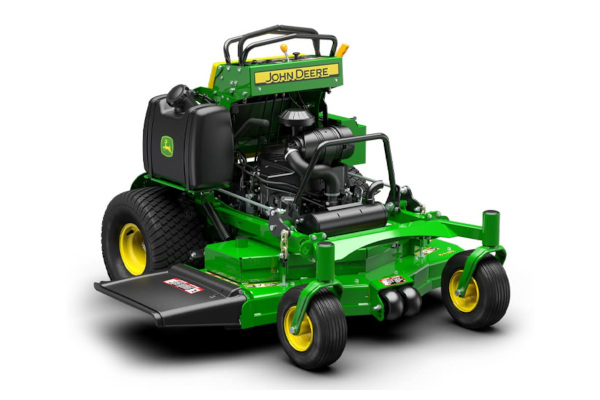

John Deere 648R

Double tap to zoom



Features

  • Commercial-quality engine is reliable and provides excellent performance and life
  • 48-in. (122-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
  • Large operator platform and quality leaning pad enhance operator comfort
  • Controls are easy to locate and use for operator comfort and productivity
  • Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
  • Maintenance is simple and easy to reduce time and cost
  • Compact design for easy hauling and excellent maneuverability
  • Frame is compact and durable for productivity and long life
  • Hydrostatic drive system is reliable and easy to use
  • Safety features are built-in to protect the operator and bystanders
  • Michelin® X® Tweel® Turf rear tire solution for QuikTrak™ R Series Mowers eliminates downtime
  • Field-installed propane conversion kits for Commercial Walk-Behind Mowers, QuikTrak™ Mowers, and Commercial ZTrak™ Mowers

Specifications

Key Specs

Engine Manufacturer/model FX691V
Engine Power Gross at 3,600 rpm: 22 hp
16.4 kW
Fuel tank capacity 5.6 U.S. gal.
21.2 L
Mower deck Size 48 in.
122 cm
Blade tip speed 18,900 fpm
5,761 m/min
Transmission Hydrostatic
Speed range 0-9.6 mph
0-15.4 km/h
Drive wheels 20x10-8 Turf Master
Caster wheels 13x6.5-6
Warranty 24 months

Engine

Manufacturer/Model FX691V
Power Gross at 3,600 rpm: 22 hp
16.4 kW
Displacement 44.3 cu in.
726 cc
Cylinders Two, V-twin
Crankcase capacity With filter, 2.2 U.S. qt
2.1 L
Oil filter Full flow, replaceable
Lubrication Full pressure
Cooling Forced air
Air cleaner
Heavy-duty canister type with safety element

Fuel system

Fuel type Gasoline
Fuel tank capacity 5.6 U.S. gal.
21.2 L
Fuel tank switch/shut-off valve Yes

Electrical system

Charge system At 3,600 rpm, 20 amp
Battery voltage 12 V
Hour meter Digital
Operator presence starting system Yes

Drivetrain

Transmission Hydrostatic
Hydraulic pumps Hydro-Gear with fans, 0.73 cu in.
12 cc
Wheel motors Hydro-Gear, 15 cu in.
246 cc
Travel speed
Forward
0-9.6 mph
0-15.4 km/h
Reverse
0-5.5 mph
0-8.9 km/h
Speed and direction control Twin hand-controlled levers
Hydraulic capacity With filter-wet, 2.9 qt
2.7 L
Dry, 5 qt
4.7 L
Filter Spin-on replaceable

Buyer's note

Warranty 24 months

Tires

Drive wheels 20x10-8 Turf Master
Load rating 4 PR

Brakes

Dynamic braking Dual hand-controlled levers
Park brake Tire engagement
Park brake actuation Hand lever

PTO

Type Electro-Magnetic with brake, 200 lb-ft
271 Nm
Drive Dual B-section V-belt with Kevlar® cord

Mower decks

Size 48 in.
122 cm
Deck construction Fabricated steel, floating mount system
Deck thickness 7 gauge
0.18 in.
4.6 mm
Discharge Side
Height-of-cut range Increments
0.25 in.
0.64 cm
1.5-5 in.
3.8-12.7 cm
Cutting width 48 in.
122 cm

Blades

Blade tip speed 18,900 fpm
5,761 m/min
Number Three

Wheels

Caster wheel type No-flat semi-pneumatic with sealed bearings
Caster wheels 13x6.5-6

Dimensions

Length 66 in.
167.6 cm
Width Deflector down, 62 in.
157.4 cm
Height 47 in.
119 cm
Weight 910 lb
412.8 kg

Additional information

Date collected 20-June-2019
