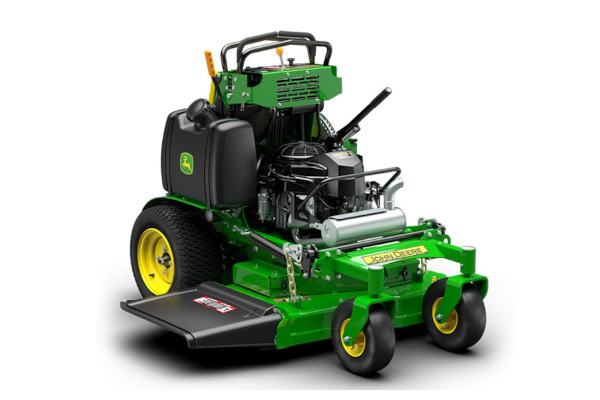

John Deere 636M
600 Series 636M
Overview:
• Compact design for easy hauling
• Hydrostatic drive system
• Commercial-quality engine
• Easy to maintain
Share This Product:
Features
- Commercial-quality engine is reliable and provides excellent performance and life
- 36-in. (91-cm) fabricated mower deck is made from 7-gauge, 0.179-in. (4.6-mm) steel for reliability and performance
- Large operator platform and quality leaning pad enhance operator comfort
- Controls are easy to locate and use for operator comfort and productivity
- Exclusive two-year, bumper-to-bumper warranty is standard with a QuikTrak™ Mower
- Maintenance is simple and easy to reduce time and cost
- Compact design for easy hauling and excellent maneuverability
- Frame is compact and durable for productivity and long life
- Hydrostatic drive system is reliable and easy to use
- Safety features are built-in to protect the operator and bystanders
Specifications
Key Specs
| Engine Manufacturer/model | FS600V |
| Engine Power | Gross at 3,600 rpm: 18.5 hp 13.8 kW |
| Fuel tank capacity | 5.5 U.S. gal. 20.8 L |
| Mower deck Size | 36 in. 91.4 cm |
| Blade tip speed | 18,900 fpm 5,761 m/min |
| Transmission | Hydrostatic |
| Speed range | 0-8.2 mph 0-13.2 km/h |
| Drive wheels | 18x8.5-10 Turf Master |
| Caster wheels | 11x4-5 |
| Warranty | 24 months |
Engine
| Manufacturer/Model | FS600V |
| Power | Gross at 3,600 rpm, 18.5 hp 13.8 kW |
| Displacement | 36.8 cu in. 603 cc |
| Cylinders | Two, V-twin |
| Crankcase capacity | With filter, 2.2 qt 2.1 L |
| Oil filter | Full flow, replaceable |
| Lubrication | Full pressure |
| Cooling | Forced air |
| Air cleaner | Dry type, dual stage |
Fuel system
| Fuel type | Gasoline |
| Fuel consumption | |
| Fuel tank capacity | 5.5 U.S. gal. 20.8 L |
| Fuel tank switch/shut-off valve | Yes |
Electrical system
| Charge system | At 3,600 rpm, 15 amp |
| Battery voltage | 12 V |
| Cold cranking amp | 300 amp |
| Hour meter | Digital |
| Operator presence starting system | Yes |
Drivetrain
| Transmission | Hydrostatic |
| Hydraulic pumps | Hydro-Gear, 0.61 cu in. 10 cc |
| Wheel motors | Hydro-Gear HGM-P, 12 cu in. 196 cc |
| Travel speed | Speed range 0-8.2 mph 0-13.2 km/h Forward Infinite, 0-8.2 mph Infinite, 0-13.2 km/h Reverse Infinite, 0-3.5 mph Infinite, 0-5.6 km/h |
| Speed and direction control | Twin hand-controlled levers |
| Hydraulic capacity | With filter, dry, 5 qt 4.7 L |
| Hydraulic oil cooler | Yes |
| Filter | Spin-on replaceable |
Buyer's note
| Warranty | 2 months |
Tires
| Drive wheels | 18x8.5-10 Turf Master |
| Load rating | 4 PR |
Brakes
| Dynamic braking | Dual hand-controlled levers |
| Park brake | Tire engagement |
| Park brake actuation | Hand lever |
PTO
| Type | Electro-magnetic with brake, 125 lb-ft 169 Nm |
| Drive | Dual B-section V-belt with Kevlar® cord |
Mower decks
| Size | 36 in. 91.4 cm |
| Deck construction | Fabricated steel, floating mount system |
| Deck thickness | 7 gauge 0.18 in. 4.6 mm |
| Discharge | Side |
| Height-of-cut range | Increments 0.25 in. 0.64 cm 1.5-5 in. 3.8-12.7 cm |
| Cutting width | 36 in. 91 cm |
Blades
| Length | 18 in. 45.7 cm |
| Thickness | 0.203 in. 0.516 cm |
| Blade tip speed | 18,900 fpm 5,761 m/min |
| Number | Two |
Wheels
| Caster wheel type | No-flat semi-pneumatic with sealed bearings |
| Caster wheels | 11x4-5 |
Dimensions
| Length | 62 in. 157.5 cm |
| Width | Deflector down, 49.5 in. 125.7 cm |
| Height | 46 in. 117 cm |
| Weight | With full fuel and oil, 731 lb 332 kg |
Additional information
| Date collected | 20-June-2019 |
