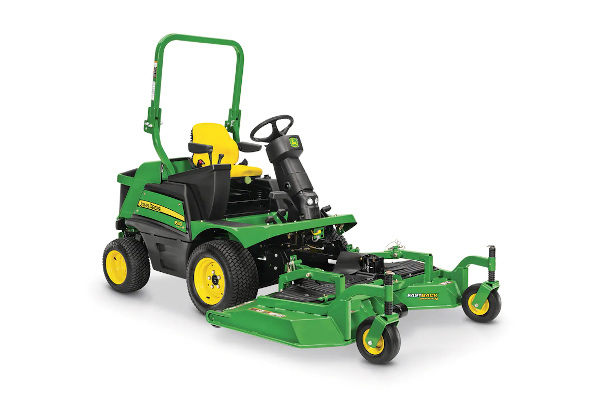

John Deere 1580 TerrainCut™ Front Mower
1500 Series TerrainCut™ Front Mower 1580 TerrainCut™ Front Mower
Overview:
• 7-Iron™ PRO Side Discharge or Fastback™ Rear Discharge Deck
• Diesel Engine
• Compatible with select front blade, snow blower and broom attachments
Share This Product:
Features
- Diesel engine has high-quality features to minimize operating cost
- Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
- Easy-to-operate controls maximize productivity
- Front mower seat has standard arm rests for added comfort and productivity
- Serviceability is designed-in to reduce maintenance cost and increase uptime
- Welded frame structure is made of high-strength steel
- Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
- Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
- Tail-follows-the-trail design helps avoid obstacles in turns
- Front mower ballast requirements
- Roll-Gard™ rollover protective structures protects operators of open-station mowers
Specifications
Key Specs
| Engine Manufacturer/model | 3TNV88C |
| Engine Power | Gross PS: 37.4 hp 27.5 kW |
| Fuel tank capacity | 16 U.S. gal. 60.6 L |
| Mower deck Size | 60, 72 in. 152, 183 cm |
| Blade tip speed | 18,000 fpm 5,486 m/min |
| Transmission | Hydrostatic full time 4WD, on-demand |
| Speed range | 0-15 mph 0-24 km/h |
| Drive wheels | 26x12-12 |
| Caster wheels | Flat free, 11x4-5 |
| Warranty | 24 months |
Engine
| Manufacturer/model | 3TNV88C |
| Power | Gross PS, 37.4 hp 27.5 kW |
| Rated engine rpm | 3,000 rpm |
| Cylinders | Three |
| Displacement | 100.2 cu in. 1.64 L |
| Maximum torque | At 1,950 rpm, 80.4 lb-ft 109 Nm |
| Injection | Direct |
| Fuel type | Diesel (B20 compatible) |
| Fuel tank capacity | 16 U.S. gal. 60.6 L |
| Cooling | Liquid |
| Cooling capacity | 8 U.S. qt 7.6 L |
| Air cleaner | Dual element dry type |
| Air restriction indicator | Standard |
| Charging system | Automotive type |
| Alternator, amp | 75 amp |
| Battery | 12 V |
Drivetrain
| Transmission | Hydrostatic full time 4WD, on-demand |
| Speed and direction control | Two-pedal foot |
| Cruise control | Optional |
| Hi/Lo range | Yes, Dual speed transmission |
Travel speed
| Speed range | 0-15 mph 0-24 km/h |
Hydraulics
| Type | Open center |
| Pump capacity | 6.3 U.S. gpm 23.8 L/min |
| Spool valve | Front lift, standard |
| Lift cylinders | Two |
Steering
| Type | Hydraulic cylinder |
| Turns lock-to-lock | 2 maximum, 1.5 minimum |
Brakes
| Type | Internal wet disk |
| Individual turn brakes | Standard |
| Master brake | Standard, locking |
Buyer's notes
| Warranty | 24 months |
Tires
| Drive wheels | 26x12-12 |
| Steering | 20x10-10 |
Weight transfer
| Type | Optional hydraulic |
Dimensions
| Wheelbase | 49.2 in. 125 cm |
| Ground clearance | 7 in. 17.8 cm |
| Length | Less mower deck, 86.7 in. 220.2 cm |
| Overall width | 55.5 in. 141 cm |
| ROPS | Standard (folded) |
| ROPS certification | 2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009 |
| Overall height with ROPS | 83.7 in. 213 cm |
| Overall height with ROPS folded | 59 in. 150 cm |
| Shipping weight | Net weight, without mower or fuel, 2,120 lb 962 kg |
Mower decks
| Construction | One-piece stamped steel; 7-Iron PRO |
| Deck thickness | 7 gauge 0.18 in. 4.6 mm |
| Size | 60, 72 in. 152, 183 cm |
| Deck offset | Yes |
| Cutting height | 1-6 in. 2.54-15.24 cm |
| Belt tensioning | Spring loaded |
| Blade tip speed | 18,000 fpm 5,486 m/min |
| Caster wheels | Type Flat free Size 11x4-5 |
| Front anti-Scalp rollers | Yes, gauge wheels |
Mower deck (rear discharge)
| Cutting width | 62, 72 in. 157, 183 cm |
| Cutting height | 1-6 in. 2.54-15.24 cm |
| Caster wheels | Type Flat free Size 11x4-5 |
Additional information
| Date collected | 05-Jan-2018 |
