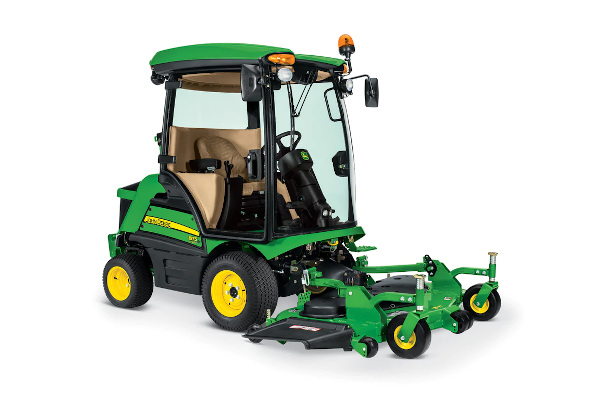

John Deere 1575 TerrainCut™ Front Mower

Double tap to zoom



Features

  • Diesel engine has high-quality features to minimize operating cost
  • Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
  • Standard premium ComfortCab provides superior comfort and performance
  • Easy-to-operate controls maximize productivity
  • Serviceability is designed-in to reduce maintenance cost and increase uptime
  • Welded frame structure is made of high-strength steel
  • Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
  • Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
  • Tail-follows-the-trail design helps avoid obstacles in turns
  • Front mower ballast requirements

Specifications

Key Specs

Engine Manufacturer/model 3TNV88C
Engine Power Gross PS: 37.4 hp
27.5 kW
Fuel tank capacity 16 U.S. gal.
60.6 L
Mower deck Size 60, 72 in.
152, 183 cm
Blade tip speed 18,000 fpm
5,486 m/min
Transmission Hydrostatic full time 4WD, on-demand
Speed range 0-12 mph
0-19.3 km/h
Drive wheels 23x10.5-12
Caster wheels Flat free, 11x4-5
Warranty 24 months

Engine

Manufacturer/model 3TNV88C
Power
Gross
PS, 37.4 hp
27.5 kW
Rated engine rpm 3,000 rpm
Cylinders Three
Displacement 100.2 cu in.
1.64 L
Maximum torque At 1,950 rpm, 80.4 lb-ft
109 Nm
Injection Direct
Fuel type Diesel (B20 compatible)
Fuel tank capacity 16 U.S. gal.
60.6 L
Cooling Liquid
Cooling capacity 10 U.S. qt
9.5 L
Air cleaner Dual element dry type
Air restriction indicator Standard
Charging system Automotive type
Alternator, amp 95 amp
Battery 12 V

Drivetrain

Transmission Hydrostatic full time 4WD, on-demand
Speed and direction control Two-pedal foot
Cruise control Optional
Hi/Lo range No, single speed transmission

Travel speed

Hi forward 0-8 mph
0-12 km/h

Hydraulics

Type Open center
Pump capacity 5.1 U.S. gpm
19.3 L/min
Spool valve Front lift, standard
Lift cylinders Two

Steering

Type Hydraulic cylinder
Turns lock-to-lock 2 maximum, 1.5 minimum

Brakes

Type Internal wet disk
Individual turn brakes Standard
Master brake Standard, locking

Buyer's notes

Warranty 24 months

Tires

Drive wheels 23x10.5-12
Steering 18x8.5-10

Weight transfer

Type Optional hydraulic

Dimensions

Wheelbase 49.2 in.
125 cm
Ground clearance 6.5 in.
16.5 cm
Length Less mower deck, 86.7 in.
220.2 cm
Overall width With 23x10.5 tires, wide stance, 58 in.
147.3 cm
ROPS Factory installed ComfortCab™
ROPS certification 2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009
Overall height with ROPS With cab, 83.9 in.
213 cm
Overall height with ROPS folded
Shipping weight Net weight, without mower or fuel, 2,436 lb
1,105 kg

Mower decks

Construction One-piece stamped steel; 7-Iron PRO
Deck thickness 7 gauge
0.18 in.
4.6 mm
Size 60, 72 in.
152, 183 cm
Deck offset Yes
Cutting height 1-6 in.
2.54-15.24 cm
Belt tensioning Spring loaded
Blade tip speed 18,000 fpm
5,486 m/min
Caster wheels Type
Flat free
Size
11x4-5
Front anti-Scalp rollers Yes, gauge wheels
Rear anti-scalp rollers Yes, gauge wheels

Mower deck (rear discharge)

Cutting width 62, 72 in.
157, 183 cm
Cutting height 1-6 in.
2.54-15.24 cm
Caster wheels Type
Flat free
Size
11x4-5

Additional information

Date collected 21-June-2019
