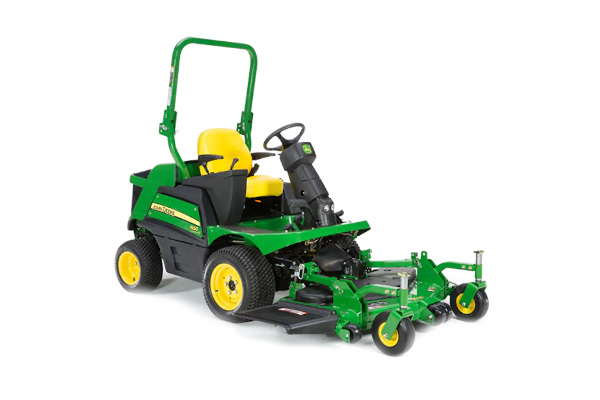

John Deere 1550 TerrainCut™ Front Mower

Double tap to zoom



Features

  • Diesel engine has high-quality features to minimize operating cost
  • Mower decks for TerrainCut™ Front Mowers match a wide variety of needs
  • Easy-to-operate controls maximize productivity
  • Front mower seat has standard arm rests for added comfort and productivity
  • Serviceability is designed-in to reduce maintenance cost and increase uptime
  • Welded frame structure is made of high-strength steel
  • Hydrostatic transmission and transaxle are heavy-duty to maximize uptime
  • Two-function mechanical rear-wheel drive for optimum use of the four-wheel drive feature
  • Dual drive tires are available to optimize performance in challenging conditions (1550 and 1570 only)
  • Tail-follows-the-trail design helps avoid obstacles in turns
  • Front mower ballast requirements
  • Roll-Gard™ rollover protective structures protects operators of open-station mowers

Specifications

Key Specs

Engine Manufacturer/model 3TNV80F
Engine Power Gross PS, 24.2 hp
17.8 kW
Fuel tank capacity 16 U.S. gal.
60.6 L
Mower deck Size 60, 72 in.
152, 183 cm
Blade tip speed 18,000 fpm
5,486 m/min
Transmission Hydrostatic 2WD, optional full time or on demand 4WD
Speed range 0-12 mph
0-19.3 km/h
Drive wheels 23x10.5-12, Optional: 23x8.5-12
Caster wheels Flat free, 11x4-5
Warranty 24 monhts

Engine

Manufacturer/model 3TNV80F
Power
Gross
PS, 24.2 hp
17.8 kW
Rated engine rpm 3,000 rpm
Cylinders Three
Displacement 77 cu in.
1.26 L
Maximum torque At 1,900 rpm, 47.2 lb-ft
64 Nm
Injection Indirect
Fuel type Diesel (optional kit permits B20 compatibility)
Fuel tank capacity 16 U.S. gal.
60.6 L
Cooling Liquid
Cooling capacity 7.5 U.S. qt
7.1 L
Air cleaner Dual element dry type
Air restriction indicator Standard
Charging system Automotive type
Alternator, amp 75 amp
Battery 12 V

Drivetrain

Transmission Hydrostatic 2WD, optional full time or on demand 4WD
Speed and direction control Two-pedal foot
Cruise control Optional
Hi/Lo range No, single speed transmission

Travel speed

Hi forward 0-12 mph
0-19.3 km/h
Hi reverse 0-5 mph
0-8 km/h

Hydraulics

Type Open center
Pump capacity 5.1 U.S. gpm
19.3 L/min
Spool valve Front lift, standard
Lift cylinders Two

Steering

Type Hydraulic cylinder
Turns lock-to-lock 2 maximum, 1.5 minimum

Brakes

Type Internal wet disk
Individual turn brakes Standard
Master brake Standard, locking

Buyer's notes

Warranty 24 months

Tires

Drive wheels 23x10.5-12, Optional: 23x8.5-12
Steering 18x8.5-8 (2WD), 18x8.5-10 (4WD)

Weight transfer

Type Optional hydraulic

Dimensions

Wheelbase 49.2 in.
125 cm
Ground clearance 6.5 in.
16.5 cm
Length Less mower deck, 86.7 in.
220.2 cm
Overall width With 23x10.5 tires, 51.7 in.
131.3 cm
ROPS Standard (folding)
ROPS certification 2-POST: OSHA 1928; Canadian Std.: CSA-352; 4-POST: SAE J2194; EU Standard: 86/298/EEC; ISO 21299:2009
Overall height with ROPS 82.7 in.
210 cm
Overall height with ROPS folded 58 in.
147 cm
Shipping weight Net weight, 2wd without mower or fuel, 1,675 lb
760 kg
Net weight, 4wd without mower or fuel, 1,835 lb
832 kg

Mower decks

Construction One-piece stamped: 7-Iron PRO
Deck thickness 7 gauge
0.18 in.
4.6 mm
Size 60, 72 in.
152, 183 cm
Deck offset Yes
Cutting height 1-6 in.
2.54-15.24 cm
Belt tensioning Spring loaded
Blade tip speed 18,000 fpm
5,486 m/min
Caster wheels Type
Flat free
Size
11x4-5
Front anti-Scalp rollers Yes, gauge wheels
Rear anti-scalp rollers Yes, gauge wheels

Mower deck (rear discharge)

Cutting width 62, 72 in.
157, 183 cm
Cutting height 1-6 in.
2.5-15.2 cm
Caster wheels Type
Flat free
Size
11x4-5

Additional information

Date collected 21-June-2019
