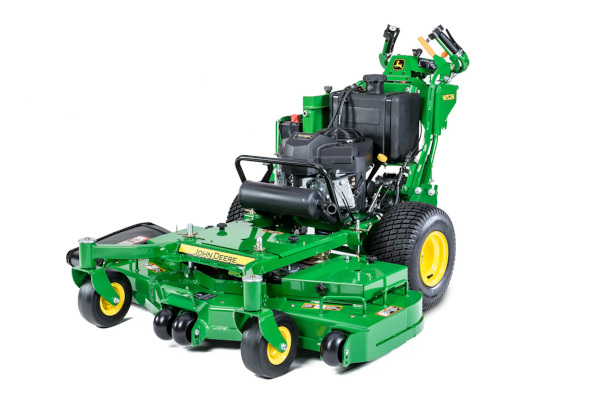

John Deere W52R
M & R Series W52R
Overview:
• 52-inch (132-cm) floating mower deck
• Powerful 18.5 hp (13.8 kW) V-twin engine
• Self-propelled hydrostatic drive system
• Easy-to-use controls for operator comfort and convenience
Share This Product:
Features
- V-twin engine delivers smooth operation and plenty of power
- A fabricated floating mower deck delivers high-quality cut
- Optional mulching attachment for extra convenience
- Convenient controls for operator comfort and productivity
- Serviceability features and 2-year, bumper-to-bumper warranty maximize uptime
- Compact design with a strong, welded frame for superior durability
- Self-propelled drive system gives infinite mowing speeds
- Thoughtful designs promote safe operation
- Optional grass catcher makes collecting grass and leaves easy
Specifications
Key Specs
| Engine manufacturer/model | FS600V - California Air Resources Board (CARB) compliant |
| Engine power | At 3600 rpm 18.5 hp* 13.8 kW |
| Fuel tank capacity | 5.4 U.S. gal. 21.9 L |
| Mower deck Size | 52 in. 132 cm |
| Blade tip speed | Approximately 18,000 fpm 5,486 m/min |
| Transmission | Two Hydro-Gear™, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock |
| Speed range | Forward, 0-7.5 mph 0-12.1 km/h Reverse, 0-3 mph 0-4.8 km/h |
| Drive wheels | 18x8.5-8 |
| Caster wheels | 9x3.5-4 semi-pneumatic |
| Warranty | 24 month, single source commercial |
Engine
| Manufacturer/model | FS600V - California Air Resources Board (CARB) compliant |
| Power | At 3600 rpm 18.5 hp* 13.8 kW |
| Displacement | 36.8 cu in. 603 cc |
| Cylinders | V-twin |
| Operating speed | 3,600 rpm |
| Ignition/Starter | Electronic/electric start |
| Valving | Overhead valves |
| Oil filter | Standard |
| Lubrication | Full pressure |
| Governor | Flyweight all speed governor |
| Hourmeter | Standard, digital |
| Cooling system | Air cooled |
| Air cleaner | Paper element with foam precleaner |
| Muffler | Low tone |
Fuel System
| Fuel type | Gasoline |
| Fuel tank capacity | 5.4 U.S. gal. 20.4 L |
| Fuel pump | Vacuum-operated diaphragm |
| Fuel delivery system | Carburetor |
| Fuel tank switch/Shut off valve | No |
| Fuel pickup | Top draw |
Electrical System
| Ignition | Electronic spark |
| Hourmeter | Standard, digital |
| Operator presence starting system | PTO off, park brake engaged, speed lever in neutral |
Drivetrain
| Transmission | Two Hydro-Gear, 0.73-cu in. (10-cc) hydraulic pumps and Danfoss 12 cu-in. (197-cc) wheel motors and ergonomic handles with spring loaded neutral lock |
| Wheel motors | Danfoss 12 cu in. 197 cc |
| Shift mechanism | Ergonomic handles with spring-loaded neutral lock |
Tires
| Drive wheels | 18x8.5-8 |
| Caster wheels | 9x3.5-4 semi-pneumatic |
Travel Speed
| Forward speeds | Infinite |
| Reverse speeds | Infinite |
| Speed range | Forward, 0-7.5 mph 0-12.1 km/h Reverse, 0-3 mph 0-4.8 km/h |
Brakes
| Type | Dynamic braking with hand controls, hand lever to set parking brake |
Dimensions
| Height | 44.8 in. 114 cm |
| Length with deck | 74.5 in. 189 cm |
| Width | Deflector down - 66 in. 168 cm Deflector up for storage - 56 in. 142 cm |
| Weight | 679 lb 308 kg |
Mower Decks
| Size | Material 10-gauge, 0.14-in. (3.42-mm) fabricated steel deck top with added 10-gauge, 0.14-in. (3.42-mm) spindle mounting plate, 7-gauge, 0.19-in. (4.8-mm) side skirts with reinforcement bar Blades Three high-lift Length - 18 in. 45.7 cm Thickness - 0.25 in. 0.64 cm Blade drive V-Belt Blade tip speed Approximately 18,000 fpm 5,486 m/min Cutting height 1.5-4.5 in. 3.8-11.4 cm 52 in. 132 cm |
Buyer's note
| Warranty | 24 month, single source commercial |
Additional information
| Date collected | 4-Feb-2019 |
