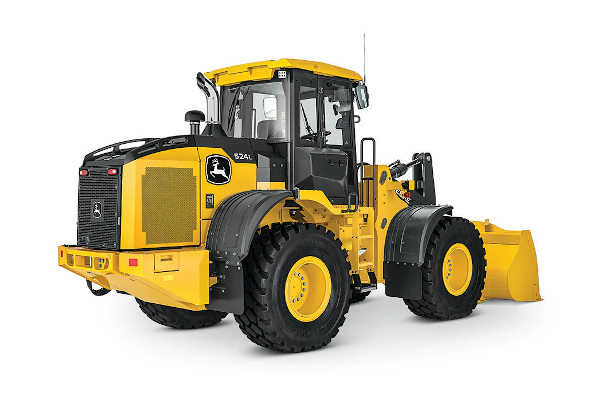

John Deere 524L

Double tap to zoom



Features

New EH Controls

  • Easily control up to six functions without removing your hand from the ergonomically designed joystick. Two industry-exclusive multifunction buttons can each be programmed to handle any of 10 functions selected through the monitor. Exclusive bucket vibrate function helps precisely meter out loose material such as feed and gravel.



Buckets & Linkage

  • New bucket and linkage designs improve load leveling, material retention, and visibility.



Elevate Your Work

  • New High-Lift Plus configuration provides an additional 24 in. in hinge-pin height over standard lift height, and 10 in. over the High-Lift model.



Redesigned Cab

  • Work in an operator station featuring 3 in. more legroom, an improved HVAC system, additional storage and an adjustable seatbelt, as compared to previous models.



Same-Side Ground-Level Service

  • All daily service points including fuel are conveniently grouped on the left of the machine for easy access.

Specifications

DRIVELINE

Engine Manufacturer John Deere
Engine Model PowerTech PVS 6068
Emission Rating Tier 4
Displacement, ltr (Inches³) 6.8 (414)
Rated Speed, rpm 1800
Engine Output - Net, kW (hp) 113 (152)
Torque, Nm (lbf / ft) 713 (526)
Transmission Type Powershift
Front Differential Type Locking
Rear Differential Type Open
Tire size - Standard 20.5 R25
Service Brake - Type Wet Disc
Service Brake - Location Axle Inboard
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Multi Disc - Driveline

DIMENSIONS

Height - Over Cab, mm (ft/in) 3330 (10 ft 11 in)
Wheelbase, mm (ft/in) 2930 (9 ft 7 in)
Length - Including Bucket, mm (ft/in) 7370 (24 ft 2 in)
Ground clearance, mm (inches) 400 (15.7)
Width Over tires - Std, mm (ft/in) 2546 (8 ft 4 in)
Height - Pivot Pin, mm (ft/in) 3810 (12 ft 6 in)
Reach - At 2130mm 45° Dump, mm (ft/in) 1440 (4 ft 9 in)
Turning Circle - Maximum, mm (ft/in) 11800 (38 ft 9 in)

CAPACITIES

Fuel Tank, ltr (gallons (US)) 220 (58)
Hydraulic Tank, ltr (gallons (US)) 82.1 (21.7)
Axle - Front, ltr (gallons (US)) 16.6 (4.375)
Axle - Rear, ltr (gallons (US)) 18 (4.75)
Transmission, ltr (gallons (US)) 21 (5.55)
Heaped Capacity, m³ (yd³) 2.1 (2.75)
Bucket Capacity - Smallest, m³ (yd³) 2.1 (2.75)
Largest bucket capacity, m³ (yd³) 3.1 (4)
Breakout - Bucket , kgf (lbf) 11070 (24406)
Ride Control System Optional
System Voltage, V 24
Alternator Output, Amp 100
Pump Type Piston
Pump Flow - 1, lt/min (gallons (US) / min) 178 (47)
System Pressure, bar (PSI) 249.94 (3625)

WEIGHTS

Operating Weight, kg (lbs) 13123 (28931)
