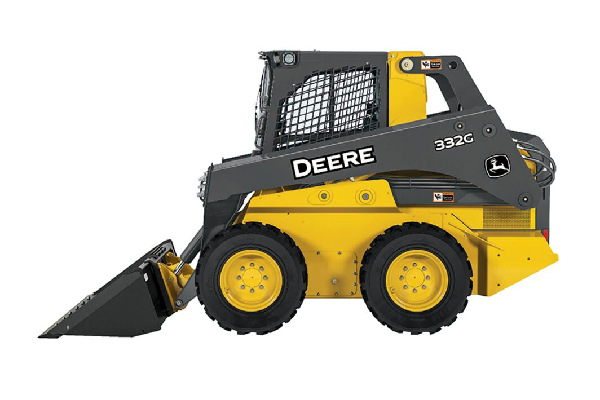

John Deere 332G

Features
Engine
- Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
- Unique Tri-Cool design resists debris buildup and employs large coolers for standout performance in severe, high-load conditions. Add a reversible fan in high-debris applications for quick core cleanout.
Cab & Controls
- Larger entryways with swing-out doors make it easier to get in, get comfortable, and get on with it. Inside, there’s more productivity-enhancing foot- and legroom.
- Three-way switchable controls between EH foot, ISO joystick, or H-pattern joystick modes. Includes switchable accelerator/decelerator with right-side foot pedal when operating in ISO or H-pattern joystick-control mode.
Productivity
- Add the new 90-in. bucket, available for the 332G and watch productivity soar.
EH Boom Performance Package
Factory-installed performance package offers increased productivity and ease-of-use with the following capabilities:
- Return to Dig allows the operator to automatically set the bucket or other attachment to his/her designated ready-to-work position.
- Return to Carry allows the operator to use joystick detents to automatically reset the boom to a designated ready-to-carry position.
- Boom Height Kickout allows the operator to pre-select a specific boom height based on truck/hopper height and use joystick detents to automatically stop at a specific height.
- Electronic Self-Level allows the self-level to work on the boom up and down unlike the hydraulic self-level option that works only on boom up.
Onboard Grade Indication Option
This option, installed in-factory or in the field, provides cross-slope or roll and mainfall slope or pitch of the machine within the in-cab monitor display.
- Easy-to-use
- Real-time interface
- Roll and pitch viewable as either “absolute” or “relative” values
- Roll and pitch viewable in either degrees or percent
Vertical-Lift Boom
- The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.
Hydraulic Boost
- Increased auxiliary hydraulic flow and power enable the 330G and 332G to make the most of an even broader range of attachments.
Easy Maintenance
- Swing open the rear door and tilt up the hood for convenient ground-level access to dipsticks, fuel- and fluid-filler necks, and filters.
Specifications
DESCRIPTION
Lift Geometry | Vertical |
Fleet Management | Yes |
Precision Guidance | No |
Proximity Guidance | No |
DRIVELINE
Engine Manufacturer | Yanmar |
Engine Model | 4TNV94FHT |
Emission Rating | Tier 4 |
Aspiration | Turbo. Intercooled |
Displacement, ltr (Inches) | 3.1 (186.3) |
Rated Engine Speed, rpm | 2500 |
SAE Net Power, kW (hp) | 72 (96.6) |
SAE Gross Power, kW (hp) | 74.6 (100) |
Max. Gross Torque, Nm (lbf / ft) | 395 (291.3) |
Drive Chain Rating [ANSI] | 100 - HD |
Tire size - Standard | 14 x 17.5 - 14PR Hauler |
DIMENSIONS
Length - No Bucket, mm (inches) | 3100 (122) |
Length - With Bucket, mm (inches) | 3710 (146) |
Width - No Bucket, mm (inches) | 1990 (78.4) |
Overall Height, mm (inches) | 2190 (86.3) |
Ground Clearance, mm (inches) | 250 (9.7) |
Wheelbase, mm (inches) | 1270 (49.9) |
Rear Departure Angle, | 29 |
Height to Hinge Pin, mm (inches) | 3350 (132) |
Dump Angle, | 48 |
Dump Height - Maximum, mm (inches) | 2680 (105.6) |
Reach - Max Dump Height, mm (inches) | 710 (28) |
Rollback - Ground Level, | 35 |
CAPACITIES
Fuel Tank, ltr (gallons (US)) | 96.5 (25.5) |
PERFORMANCE
Rated Operating Capacity - Optional Counterweight, kg (lbs) | 1703 (3750) |
Rated Operating Capacity, kg (lbs) | 1633 (3600) |
Tipping Capacity (SAE), kg (lbs) | 3269 (7200) |
Axle Torque - Maximum, Nm (lbf / ft) | 9289 (6830) |
Speed - Maximum, kph (mph) | 19.3 (12) |
Breakout - Lift, kN (lbf) | 37.8 (8520) |
Breakout - Bucket, kN (lbf) | 61.8 (13904) |
Hydraulic Power, kW (hp) | 37.29 (50) |
Hydraulic Power - Option, kW (hp) | 61.234 (82.1) |
Pump Output, lt/min (gallons (US) / min) | 95 (25) |
Pump Flow - Option, lt/min (gallons (US) / min) | 156 (41.1) |
System Pressure, bar (PSI) | 237.87 (3450) |
WEIGHTS
Operating Weight, kg (lbs) | 4540 (10000) |
