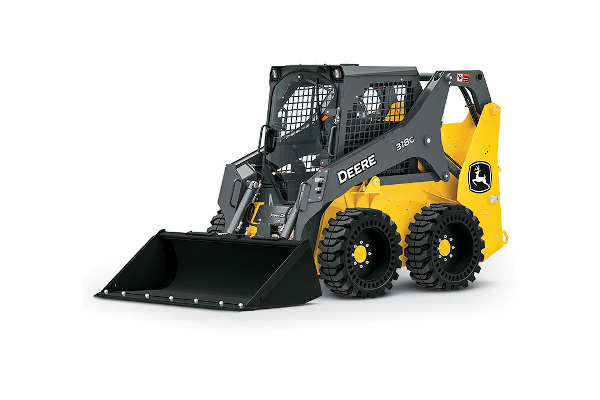

John Deere 318G

Double tap to zoom



Features

Vertical Boom Lift

  • The vertical-lift boom offers more lift height and reach at the top of the lift path, for more stability and truck-loading ability.



Engine

  • Final Tier 4 (FT4)/EU Stage IV diesel engine packs plenty of power and torque.
  • Auxiliary flow rates make the most of an even broader range of attachments.
  • Large coolers increase heat rejection for uninterrupted performance in severe, high-load conditions. Engine-mounted, belt-driven cooling fan delivers efficient, reliable performance.



Mobility

  • With a weight of 6,542 pounds and convenient front and rear tie-downs, this skid steer is easy to trailer behind a pickup truck.
  • Two-speed option provides faster transport speeds, to help boost productivity.



Cab & Controls

  • Optional joystick controls, air conditioning, and ride control provide cab comforts operators expect in this larger-performance model.
  • Excellent all-around visibility is further enhanced with an LED side-lighting option.
  • Optional rearview camera allows operators to see the jobsite behind the machine.



Serviceability

  • Swing-out rear door enables easy, ground-level access to daily service checkpoints and cooling system components.
  • Hinged rear door and hydraulic cooler swing open, making trash removal and core cleanout simple.
  • Spin-on engine oil and fuel filers mounted remotely behind the rear door allow quick changes.

Specifications

DESCRIPTION

Lift Geometry Vertical

DRIVELINE

Engine Manufacturer Yanmar
Engine Model 4TNV86CHT
Emission Rating Tier 4
Aspiration Turbo
Displacement, ltr (Inches) 2.1 (128)
Rated Engine Speed, rpm 2600
SAE Net Power, kW (hp) 45.6 (61)
SAE Gross Power, kW (hp) 48.5 (65)
Max. Gross Torque, Nm (lbf / ft) 207 (153)
Drive Chain Rating [ANSI] 80 - HD
Tire size - Standard 10 x 16.5

DIMENSIONS

Length - No Bucket, mm (inches) 2630 (103)
Length - With Bucket, mm (inches) 3240 (127.6)
Width - No Bucket, mm (inches) 1600 (62.9)
Overall Height, mm (inches) 1960 (77.2)
Ground Clearance, mm (inches) 180 (7)
Wheelbase, mm (inches) 1050 (41.5)
Rear Departure Angle, 22.3
Height to Hinge Pin, mm (inches) 3050 (120)
Dump Angle, 42
Dump Height - Maximum, mm (inches) 2400 (94.3)
Reach - Max Dump Height, mm (inches) 860 (34)
Rollback - Ground Level, 30

CAPACITIES

Fuel Tank, ltr (gallons (US)) 71 (19)

PERFORMANCE

Rated Operating Capacity - Optional Counterweight, kg (lbs) 951 (2095)
Rated Operating Capacity, kg (lbs) 883 (1945)
Tipping Capacity (SAE), kg (lbs) 1766 (3890)
Axle Torque - Maximum, Nm (lbf / ft) 6459 (4764)
Speed - Maximum, kph (mph) 11.1 (6.9)
Speed - Maximum Option, kph (mph) 16.3 (10.1)
Breakout - Lift, kN (lbf) 22.2 (5000)
Breakout - Bucket, kN (lbf) 26.6 (6000)
Hydraulic Power, kW (hp) 23.159 (31)
Pump Output, lt/min (gallons (US) / min) 59 (16)
System Pressure, bar (PSI) 237.87 (3450)

WEIGHTS

Operating Weight, kg (lbs) 2940 (6475)
