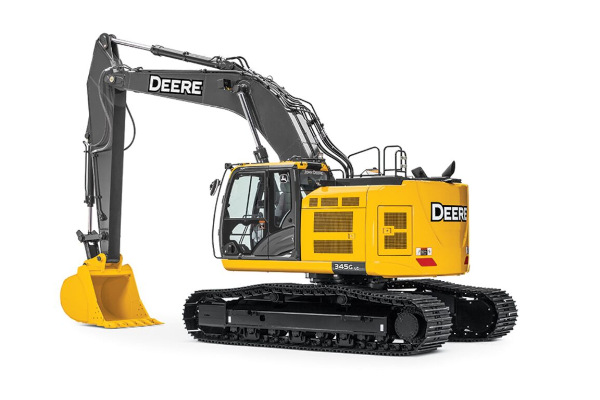

John Deere 345G LC

Double tap to zoom



Features

Engine

  • Turbocharged EPA Final Tier 4 (FT4)/EU Stage IIIB diesel meets rigid emission standards, runs smooth, and packs plenty of power and torque.



Three-Pump Hydraulic System

  • Three-pump hydraulic system delivers superb hydraulic flow. With one pump dedicated to the swing circuit, hydraulic flow is never compromised – for fast cycle times and smooth multifunction performance.



Full-Size Cab

  • Ergonomically correct short-throw pilot levers provide predictable, smooth control with less movement or effort.
  • Push buttons on the right joystick allow fingertip control of auxiliary hydraulic flow for operating attachments.



Productivity

  • Designed to work in close-quarters, with reduced tail swing, this specialist delivers more reach, lift capacity, digging depth, breakout force, swing torque, and bucket capacity than the model it replaces.



Visibility

  • See more and do more with a hood design that enables optimal visibility to the sides and rear.
  • Standard rearview camera expands the view even more, showing the action behind the machine on the front monitor.



Serviceability

  • Swing open the side panels for quick, convenient, ground-level access to filters and daily service points.
  • Easily accessible in the rear door behind the cab, the battery-disconnect switch helps extend battery life.

Specifications

DRIVELINE

Emission Rating Tier 4
Engine Manufacturer Isuzu
Number Of Cylinders (Per Engine) 6
Displacement, ltr (Inches³) 7.79 (475.3)
Rated speed, rpm 1900
Engine Output - Net, kW (hp) 186 (249)
Number Of Carrier Rollers - Each Side 2
Number Of Track Rollers - Each Side 8
Track Shoe Width, mm (inches) 800 (32)

DIMENSIONS

Transport Length Mono Boom, mm (ft/in) 10020 (32 ft 10 in)
Transport Height - Maximum, mm (ft/in) 3420 (11 ft 3 in)
Overall Undercarriage Width, mm (ft/in) 3390 (11 ft 1 in)
Track Length On Ground, mm (ft/in) 4050 (13 ft 3 in)
Undercarriage Overall Length, mm (ft/in) 4940 (16 ft 2 in)
Tailswing Radius, mm (ft/in) 2090 (6 ft 10 in)
Ground Clearance, mm (inches) 500 (20)
Width over standard tracks, mm (ft/in) 3390 (11 ft 1 in)
Track Gauge, mm (ft/in) 2590 (8 ft 6 in)
Digging Reach - Mono Boom, mm (ft/in) 11460 (37 ft 7 in)
Ground Level Reach - Mono Boom, mm (ft/in) 9620 (31 ft 7 in)
Dig Height - Mono Boom, mm (ft/in) 11690 (38 ft 4 in)
Dump Height - Mono Boom, mm (ft/in) 8670 (28 ft 5 in)
Dig depth - 2.44m / 8'ft flat bottom, mm (ft/in) 7410 (24 ft 4 in)
Dig Depth - Mono Boom, mm (ft/in) 7570 (24 ft 10 in)
Standard Dipper, mm (ft/in) 3760 (12 ft 4 in)

CAPACITIES

Fuel Tank, ltr (gallons (US)) 380 (100)
Hydraulic Tank, ltr (gallons (US)) 160 (42)
Number Of Batteries 2
Voltage, V 24

PERFORMANCE

Ground Bearing Pressure, kPa (PSI) 50 (7.3)
Slew Speed, rpm 10.5
Slew Torque, kNm (lbf / ft) 90.5 (66750)
Travel Speed - High, kph (mph) 4.1 (2.5)
Tractive Force, kN (lbf) 298 (66990)
Dipper Tearout, kN (lbf) 127 (28550)
Bucket Breakout, kN (lbf) 202 (45410)
Gradeability, % 70
End lift - 7.5m Reach, kg (lbs) 8600 (18450)
Side lift - 7.5m Reach, kg (lbs) 4800 (10250)
Main Pumps - Maximum Flow, lt/min (gallons (US) / min) 472 (124)
Bucket Pressure, bar (PSI) 347 (5030)
Boost Pressure, bar (PSI) 380 (5510)

WEIGHTS

Operating Weight, kg (lbs) 36645 (80788)
