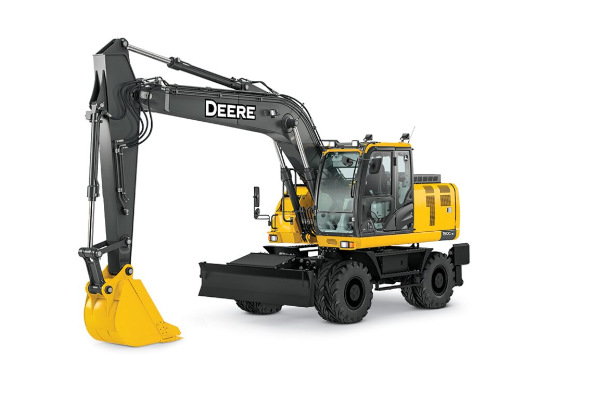

John Deere 190G W

Double tap to zoom



Features

Engine

  • The EPA Interim Tier 4/EU Stage IIIB employs cooled exhaust gas recirculation (EGR) for reducing NOX, and a diesel particulate filter (DPF) and diesel oxidation catalyst (DOC) to reduce particulate matter.
  • Highly efficient, heavy-duty cooling system keeps things cool, even in the toughest environments.



Controls

  • Ergonomically correct short-throw pilot levers provide smooth, predictable fingertip control with less movement and effort.
  • The F-N-R directional switch is now conveniently located on the left-hand pilot lever, making it easier to control the blade and stabilizer functions.



Productivity

Three productivity modes allow you to choose the digging style that fits the job:

  • High-productivity delivers more power and faster hydraulic response to move more material.
  • Power delivers a balance of power, speed, and fuel economy for normal operation.
  • Economy limits top speed and helps save fuel.



Visibility

  • New hood design, expanded front and side glass, narrow front cab posts, overhead glass, and numerous mirrors provide optimal visibility.



Serviceability

  • Swing open the side panels on either side of the machine to provide even more wide-open access to components.



Arm & Boom

  • Mono boom delivers the reach and lift capacity you need for long-distance work. Or opt for a two-piece boom for added versatility.
  • A John Deere exclusive, three welded bulkheads within the boom resist torsional stress for amazing durability.

Specifications

DRIVELINE

Engine Manufacturer Isuzu
Number Of Cylinders 4
Displacement, ltr (Inches³) 5.2 (317)
Rated Speed, rpm 1800
Engine Output - Net, kW (hp) 129 (173)
Tire size - Standard 10.00-20

DIMENSIONS

Transport Length - Mono Boom, mm (ft/in) 9480 (31 ft 1 in)
Transport Height - Over Mono Boom, mm (ft/in) 3120 (10 ft 3 in)
Overall Width, mm (ft/in) 2450 (8 ft )
Tailswing Radius, mm (ft/in) 2320 (7 ft 7 in)
Wheelbase, mm (ft/in) 2650 (8 ft 8 in)
Cab Height, mm (ft/in) 3220 (10 ft 7 in)
Ground Clearance, mm (inches) 350 (14)
Standard Dipper Length, mm (ft/in) 2710 (8 ft 11 in)
Digging Reach - Mono Boom, mm (ft/in) 9580 (31 ft 5 in)
Ground Level Reach - Mono Boom, mm (ft/in) 9400 (30 ft 10 in)
Dump Clearance Height - Mono Boom, mm (ft/in) 6450 (21 ft 2 in)
Maximum Vertical Wall - Mono Boom, mm (ft/in) 5260 (17 ft 3 in)
Dig depth - 2.44m / 8'ft flat bottom Mono, mm (ft/in) 5640 (18 ft 6 in)
Dig Depth - Mono Boom, mm (ft/in) 5830 (19 ft 2 in)
Dozer Blade Parallel action
Dozer Blade - Width, mm (ft/in) 2730 (8 ft 11 in)
Dozer Blade - Height, mm (inches) 590 (23)
End Lift - 4 Stabs Down At 7.5M GL Reach (Mono), kg (lbs) 4940 (10900)
Side Lift - 4 Stabs Down At 7.5M GL Reach (Mono), kg (lbs) 3370 (7420)

CAPACITIES

Fuel Tank, ltr (gallons (US)) 290 (76.6)
Hydraulic Tank, ltr (gallons (US)) 100 (26.4)
Battery Voltage, V 24

PERFORMANCE

Slew Speed, rpm 11.5
Slew Torque, kNm (lbf / ft) 53 (39090)
Tractive Force, kN (lbf) 93.5 (21020)
Low range fwd speed 1, kph (mph) 8.6 (5.3)
High range fwd speed 2, kph (mph) 35 (21.7)
Max bucket breakout, Mono Boom, kN (lbf) 126 (28330)
Main Pump Variable axial piston
Main Pumps - Maximum Flow, lt/min (gallons (US) / min) 472 (124)
Boom Pressure, bar (PSI) 343 (4975)
Boost Pressure, bar (PSI) 363 (5265)

WEIGHTS

Mono weight with 4 stabs, kg (lbs) 20000 (44530)
