John Deere VR84C Vibratory Roller
Rollers VR84C Vibratory Roller
Overview:
• Drum Width: 21m (84 in.)
• Dynamic Force: 4250 kg (9,370 lbf)
• Operating Weight (Smooth Drum): 1148 kg (2,530 lb.)
Share This Product:
Features

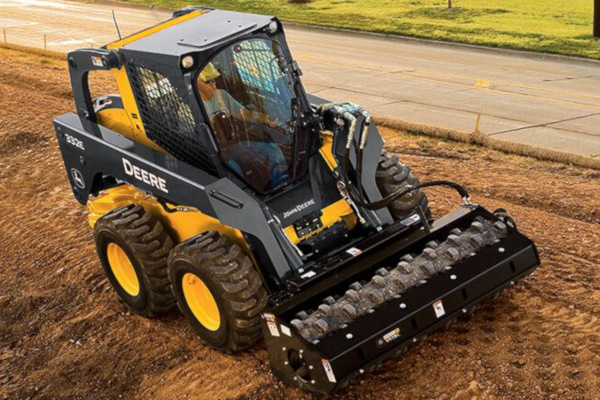

- Worksite Pro vibratory rollers turn a skid steer into a powerful compactor, ideal for asphalt patch, foundation, trench, and flatwork compaction. They're very economical, since owning one eliminates the costs and maintenance of a self-propelled roller.
- Powered by standard hydraulics, rollers produce compaction forces up to 9,370 lb.
- These attachments are easy to maneuver, with drum oscillation of +- 15 deg.
- Quik-Tatch Compatible, they take only one minute to hook up.
- Drum and shaft bearings are lubricated and cooled in oil bath for long life.
- Bidirectional operation increases productivity
Specifications
| Model | VR84C Vibratory Roller |
| Compatibility (smooth drum) | 326E, 328E, and 332E Skid Steers; and 319E, 323E, 329E, and 333E Compact Track Loaders |
| Compatibility (Sheep's-foot drum) | NA |
| Overall Width | 90 in. (2.3 m) |
| Overall Length | 39 in. (99 cm) |
| Overall Height | 31 in. (79 cm) |
| Drum Width | 84 in. (2.1 m ) |
| Drum Diameter | |
| Smooth | 24 in. (61.0 cm) |
| Sheep's-foot (without pads) | N/A |
| Drum Oscillation | +- 15 deg. |
| Dynamic Force | 9,370 lbf (4250 kg) |
| Vibrations per minute | |
| Range | 11-25 gpm (41-95 ?/min.) |
| Optimum Performance | 20 gpm (75.7 L/min.) |
| Operating Weight | |
| (Smooth Drum) | 2,530 lb. (1148 kg) |
| Sheep's-foot drum | N/A |
