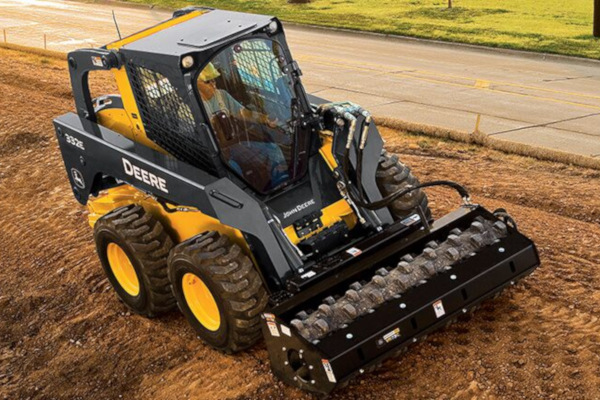

John Deere VR66C Vibratory Roller
Rollers VR66C Vibratory Roller
Overview:
• Drum Width: 1.7 m (66 in.)
• Dynamic Force: 3538 kg (7,800 lbf)
• Operating Weight (Smooth Drum): 975 kg (2,150 lb.)
Share This Product:
Features
- Worksite Pro vibratory rollers turn a skid steer into a powerful compactor, ideal for asphalt patch, foundation, trench, and flatwork compaction. They're very economical, since owning one eliminates the costs and maintenance of a self-propelled roller.
- Powered by standard hydraulics, rollers produce compaction forces up to 9,370 lb.
- These attachments are easy to maneuver, with drum oscillation of +- 15 deg.
- Quik-Tatch Compatible, they take only one minute to hook up.
- Drum and shaft bearings are lubricated and cooled in oil bath for long life.
- Bidirectional operation increases productivity
Specifications
| Model | VR66C Vibratory Roller |
| Compatibility (smooth drum) | 313, 315, 318E, 320E, 326E, 328E, and 332E Skid Steers; and CT315, 319E, 323E, 329E, and 333E Compact Track Loaders |
| Compatibility (Sheep's-foot drum) | 313, 315, 318E, 320E, 326E, 328E, and 332E Skid Steers; and CT315, 319E, 323E, 329E, and 333E Compact Track Loaders |
| Overall Width | 72 in. (1.8m) |
| Overall Length | 39 in. (99 cm) |
| Overall Height | 31 in. (79 cm) |
| Drum Width | 66 in. (1.7 m) |
| Drum Diameter | |
| Smooth | 24 in. (61.0 cm) |
| Sheep's-foot (without pads) | 20 in. (51.0 cm) |
| Drum Oscillation | +- 15 deg. |
| Dynamic Force | 7,800 lbf (3538 kg) |
| Vibrations per minute | |
| Range | 41-95 L/min. (11-25 gpm) |
| Optimum Performance | 75.7 L/min. (20 gpm) |
| Operating Weight | |
| (Smooth Drum) | 2,150 lb (975 kg) |
| Sheep's-foot drum | 2,085 lb (945 kg ) |
