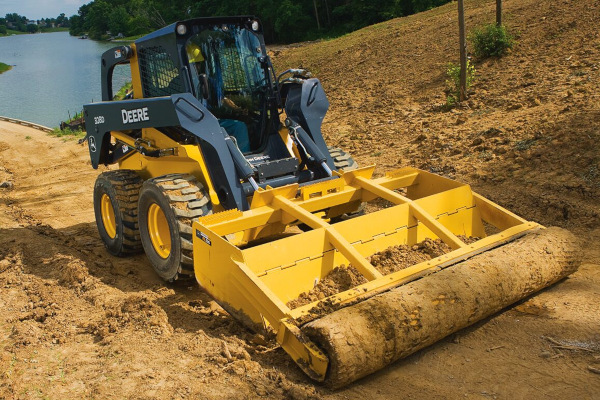

John Deere RL84 Roller Level
Rollers RL84 Roller Level
Overview:
• Weight: 734 kg (1,620 lb.)
• Overall Width: 2367 mm (93.3 in.)
• Box Width: 2133 mm (84 in.)
Share This Product:
Features
- The Worksite Pro Roller Level delivers reliable, cost-efficient productivity for finish-grade work.
- Designed for minimal maintenance and maximum uptime, with only two greasable bearings, two replaceable cutting edges, and no hydraulics.
- Roller pulverizes clumps and clods for a smoother finish in loose soil
- Front roller position offers unobstructed visibility and provides total control when contouring, grading, cutting, and smoothing flat or significantly sloped terrain
- Front and rear cutting edges make quick work of tough site-prep and grading tasks. Use either or both edges to spread loose material and for quickly cutting or scraping had-pack without disturbing the base below.
Specifications
| Model | RL84 Roller Level |
| Weight | 1,620 lb. (734 kg) |
|
Width |
|
| Overall | 93.3 in. (2367 mm) |
| Box | 84 in. (2133 mm) |
| Length | 66.7 in. (1694 mm) |
| Height | 25.6 in. (650 mm) |
| Cutting Edge, Bolt-on | Standard |
| Front |
0.625 x 6 x 84 in. (16 x 152 x 2134 mm) |
| Rear |
0.625 x 6 x 84 in. (16 x 152 x 2134 mm) |
| Roller Diameter | 13 in. (330 mm) |
| Hydraulics | No |
| Greasable Bearings (2) | Standard |
| Vehicle Compatibility | 324E, 330G, and 332G Skid Steers; 317G, 323E, 331G, and 333G CTLs |
