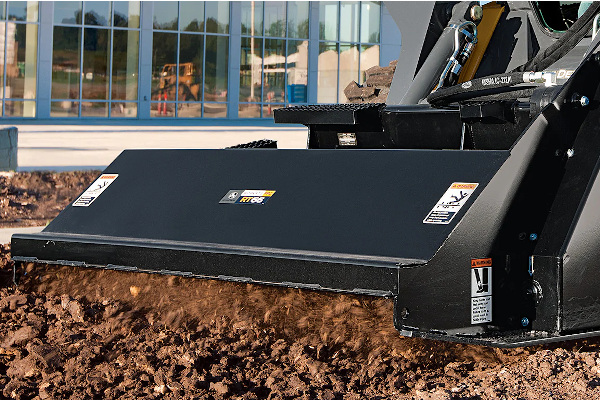

John Deere RT52 Tiller
Rakes & Tillers RT52 Tiller
Overview:
• Tilling Width: 52 in. (1.3 m)
• Number of Tines: 24
• Operating Width: 750 lb. (340 kg)
Share This Product:
Features
- RT52 and RT66 till up to a 15-cm (6-in.) depth. Rugged construction and heavy-duty tines provide long service life and excellent operation in all conditions.
- Offset to the right 15 cm (6 in.), both models are ideal for close tilling besides walls and sidewalks. The RT66 can also be positioned in the center.
- Tillers require only standard hydraulic flow for high-quality performance.
- For increased efficiency, till in both forward and reverse directions.
- Optional scarifiers increase productivity in hard ground conditions.
Specifications
| Model | RT52 Tiller |
| Tilling Width | 52 in. (1.3 m) |
| Overall Width | 62 in. (1.6 m ) |
| Overall Length | 48 in. (122 cm ) |
| Overall Height | 35 in. (89 cm) |
| Tilling Depth | 6 in. (15 cm) |
| Number of Tines | 24 |
| Number of Scarifiers (optional) | 4 |
| Hydraulic Flow | |
| Minimum | 18 gpm (68 lpm) |
| Maximum | 28 gpm (106 lpm) |
| Operating Weight | 750 lb. (340 kg) |
| Vehicle Compatibility | 318E, 320E, 324E, 326E, 328E,330G, and 332 E/G Skid Steers; and 319E, 323E, 329E, 331G, and 333E/G CTLs |
