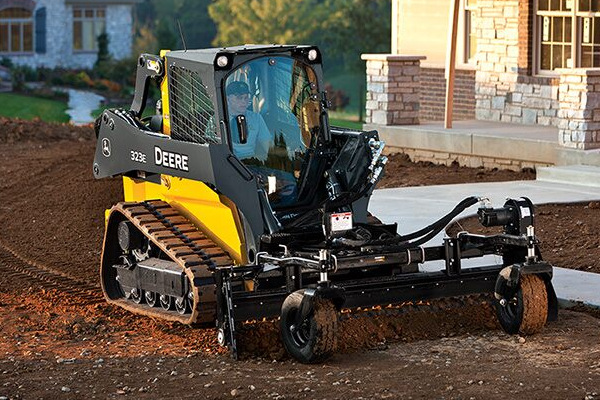

John Deere PR96B Power Rake
Rakes & Tillers PR96B Power Rake
Overview:
• Raking Width: 90 in. (2438 mm)
• Length: 76 in. (1930 mm)
• Weight: 1,320 lb. (598 kg)
• Min. Hydraulic Flow: 60 L/min. (16 gpm)
Share This Product:
Features
- Worksite Pro power rakes are perfect for landscape tasks such as seedbed preparation, rock raking, site development, and more.
- Adjustable end plates allow the power rake to do double duty as a box scraper, trapping and gathering stones for piling and pickup.
- long-life carbide teeth on roller dig, lift, and pulverize dirt.
- Heavy-duty drive chain is housed in a sealed oil bath to reduce maintenance.
- Power rake roller assemblies can rotate 20 deg. from center in either direction, allowing material to be moved left or right (requires 12-volt kit).
- Forward and backward raking capability of the power rakes halves the time required for seedbed preparation.
Specifications
| Model | PR96B Power Rake |
| Minimum Hydraulic Flow | 16 gpm (60 L/min.) |
| Raking Width | 90 in. (2438 mm) |
| Operating Width | 100 in. (2540 mm) |
| Length | 76 in. (1930 mm) |
| Height | 32 in. (812 mm) |
| Box End Plates | front or rear |
| Tooth Roller Diameter | 9 in. (229 mm) |
| Weight | 1,320 lb. (598 kg) |
| Angle Control | 12-volt actuation, 0-20-deg. rotation |
| Vehicle Compatibility | 320E, 324E, 326E, 328E, 330G, and 332E/G Skid Steers; and 317G, 319E, 323E, 329E, 331G, and 333E/G CTLs |
