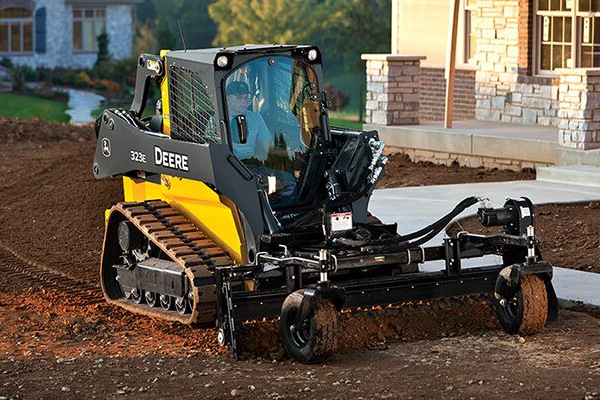

John Deere PR72B Power Rake
Rakes & Tillers PR72B Power Rake
Overview:
• Raking Width: 72 in. (1827 mm)
• Length: 64 in. (1625 mm)
• Weight: 925 lb. (419 kg)
• Min. Hydraulic Flow: 49 L/min. (13 gpm)
Share This Product:
Features
- Worksite Pro power rakes are perfect for landscape tasks such as seedbed preparation, rock raking, site development, and more.
- Adjustable end plates allow the power rake to do double duty as a box scraper, trapping and gathering stones for piling and pickup.
- long-life carbide teeth on roller dig, lift, and pulverize dirt.
- Heavy-duty drive chain is housed in a sealed oil bath to reduce maintenance.
- Power rake roller assemblies can rotate 20 deg. from center in either direction, allowing material to be moved left or right (requires 12-volt kit).
- Forward and backward raking capability of the power rakes halves the time required for seedbed preparation.
Specifications
| Model | PR60 Power Rake |
| Minimum Hydraulic Flow | 13 gpm (49 L/min.) |
| Raking Width | 72 in. (1827 mm) |
| Operating Width | 81 in. (2056 mm) |
| Length | 64 in. (1625 mm) |
| Height | 31 in. (787 mm) |
| Box End Plates | front or rear |
| Tooth Roller Diameter | 9 in. (229 mm) |
| Weight | 925 lb (419 kg) |
| Angle Control | 12-volt actuation, 0-20-deg. rotation |
| Vehicle Compatibility | 312GR, 314G, 316GR, 318E/G, 320E, 324E, 326E, 328E, 330G, and 332E/G Skid Steers; and 317G, 319E, and 323E CTLs |
