John Deere GU78 Utility Grapple
Grapples GU78 Utility Grapple
Overview:
Width: 1956 mm (77 in.)
Standard Number of Tines: 13
Operating Weight: 258 kg (568 lb.)
Share This Product:
Features

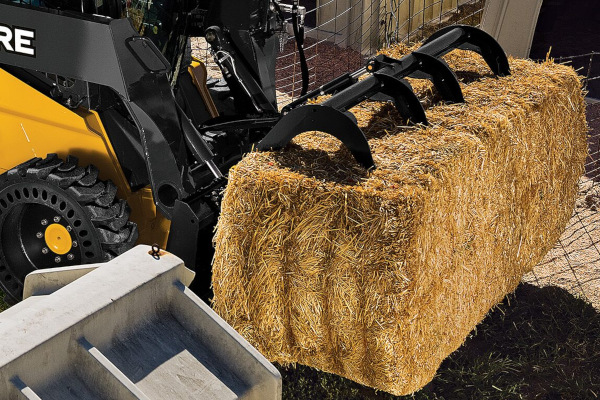

- One-piece grapples provide a firm grasp for efficient hay and manure handling.
- Standard 114-mm (4.5 in.) tine spacing works well for sorting or sifting materials. Simply add tines for 38-mm (1.5 in.) spacing.
- Greaseable pivot points, 25.4-mm (1 in.) hardened pins, and cylinder rods provide long-term strength and durability.
- Grapple opening of 914 mm (36 in.) accommodates large payloads.
- Like all Worksite Pro™ attachments, these grapples are optimized to work with John Deere skid steers, compact track loaders, and 244J Loader, and are compatible with most
Specifications
| MODEL | GU78 |
| Width | 1956 mm (77 in.) |
| Length | 970 mm (38.2 in.) |
| Height | |
| Grapple Closed | 700 mm (27.6 in.) |
| Grapple Open | 1162 mm (45.7 in.) |
| Grapple Opening | 914 mm (36 in.) |
| Number of Tines | |
| Standard | 13 |
| Optional | 25 |
| Tine Spacing | |
| Opening Between Tines | 114 mm (4.5 in.) |
| Optional Spacing | 38 mm (1.5 in.) |
| Operating Weight | 258 kg (568 lb.) |
| Vehicle Compatibility | 318D/E, 319D/E, 320D/E, 323D/E, 326D/E, 328D/E, 329D/E, 332D/E, and 333D/E |
