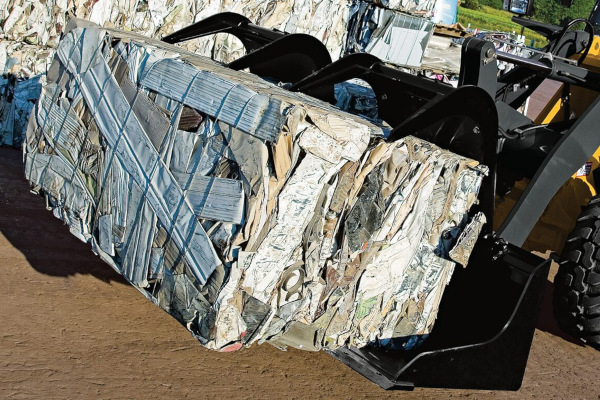

John Deere GS78B Scrap Grapple
Grapples GS78B Scrap Grapple
Overview:
Width: 1980 mm (78 in.)
Operating Weight: 520 kg (1,150lb.)
Share This Product:
Features
- Two-independent-action hydraulic-powered grapples pick up and grip different-sized objects.
- 997 mm (39.3 in.) grapple opening loads easily, letting you handle large payloads.
- Pre-drilled lip makes it easy to add an optional bolt-on replaceable cutting edge for longer life.
- Greasable pivot points, hardened 25.4-mm (1 in.) pins, and hardened cylinder rods increase durability.
Specifications
| Scrap Grapple Bucket | GS78B |
| Weight | 520 kg (1,150 lb.) |
| Width | |
| Overall | 1980 mm (78 in.) |
| Grapple Arm | 620 mm (24.4 in.) |
| Grapples | 1660 mm (65.3 in.) |
| Length | |
| Bucket Depth | 840 mm (33 in.) |
| Grapple Closed | 1035 mm (40.7 in.) |
| Grapple Opened | 1060 mm (41.7 in.) |
| Height | |
| Grapple Closed | 830 mm (32.6 in.) |
| Grapple Opened | 1170 mm (46 in.) |
| Grapple Opening | |
| Tine Tip | 950 mm (37.4 in.) |
| Grapple Closed | 460 mm (18.1 in.) |
| Grapple Opened | 1035 mm (40.75 in.) |
| Pivot Pin Diameter | 35 mm (1.375 in.) |
| Hydraulics | |
| Cylinder Bore Diameter | 64 mm (2.5 in.) |
| Cylinder Rod Diameter | 36 mm (1.4 in.) |
| Cylinder Stroke | 206 mm (8.1 in.) |
| Maximum Operating Pressure | 24 000 kPa (3,500 psi) |
| Hydraulic Connection | 12.7-mm (0.5 in.) quick- connect couplers |
| Vehicle Compatibility | 320G, 324G, 330G, and 332G SSLs; 325G, 331G, and 333G CTLs; 204L, 244L, 304L, and 324L CWLs |
