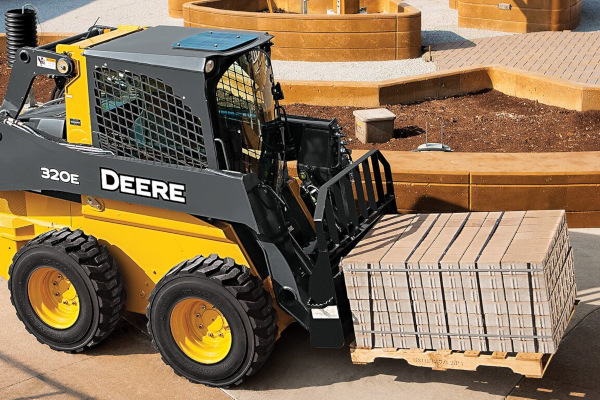

John Deere Severe Duty for CWLs Pallet Fork

Double tap to zoom



  • Quik-Tatch system allows easy hook-up in seconds.
  • Pallet forks are available in lengths of 42 in. and 48 in. (1067 and 1219 mm) for standard duty, 48 in (1219 mm) for heavy duty, and 48 and 60 in. (1219 and 1524 mm) for severe duty.
  • Skid-resistant steps on both sides of the pallet-fork frame ease vehicle entrance and exit.
  • Standard-, heavy-, and severe-duty styles hold forks in a rigid position.
  • Single-piece backrest is available on the standard - and heavy-duty options. Severe-duty skid steer loader option has a walk-through backrest with a bolt-on option.
  • Standard-duty forks can be positioned in widths from 8-40 in. (203-1016 mm) in 4 in. (102 mm) increments, heavy-duty models in widths from 8-60 in. (203-1524 mm) in 4 in. (102 mm) increments, and severe-duty units in widths to 45 in. (1143 mm) in 5 in. (127 mm) increments or to 60 in. (1524 mm) in 5.35 in. (136 mm) increments.
  • Severe-duty pallet forks offer improved visibility, increased capacity, and better durability than the previous fork-frame design.


Frame Width
With Steps N/A
Less Steps 1520 mm (60.0 in.)
Frame Height 535 mm (21.1 in.)
Overall Length (frame and fork)
1067 mm (42 in.) N/A
1220 mm (48 in.) 1445 mm (56.9 in.)
1520 mm (60 in.) 1750 mm (68.9 in.)
Overall Weight (with 2 fork tines)
1067 mm (42 in.) N/A
1220 mm (48 in.) 342 kg (754 lb.)
1520 mm (60 in.) 370 kg (816 lb.)
Fork Thickness 50 mm (2 in.)
Fork Tine Load Rating at 600-mm
(24 in.) Load Center (1 pair of tines)*
4000 kg (8,800 lb.)
Vehicle Compatibility 204K, 244K, 244K-II,
304K, and 324K CWLs

*Pallet fork capacity listed. Reference machine Operator’s Manual for machine capacity.
