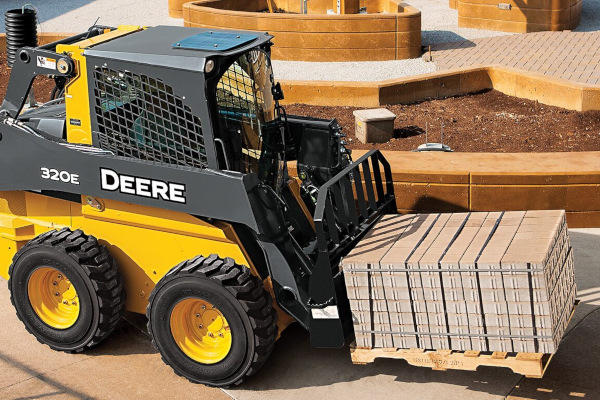

John Deere Severe Duty PF60 Pallet Fork

Double tap to zoom



  • Quik-Tatch system allows easy hook-up in seconds.
  • Pallet forks are available in lengths of 42 in. and 48 in. (1067 and 1219 mm) for standard duty, 48 in (1219 mm) for heavy duty, and 48 and 60 in. (1219 and 1524 mm) for severe duty.
  • Skid-resistant steps on both sides of the pallet-fork frame ease vehicle entrance and exit.
  • Standard-, heavy-, and severe-duty styles hold forks in a rigid position.
  • Single-piece backrest is available on the standard - and heavy-duty options. Severe-duty skid steer loader option has a walk-through backrest with a bolt-on option.
  • Standard-duty forks can be positioned in widths from 8-40 in. (203-1016 mm) in 4 in. (102 mm) increments, heavy-duty models in widths from 8-60 in. (203-1524 mm) in 4 in. (102 mm) increments, and severe-duty units in widths to 45 in. (1143 mm) in 5 in. (127 mm) increments or to 60 in. (1524 mm) in 5.35 in. (136 mm) increments.
  • Severe-duty pallet forks offer improved visibility, increased capacity, and better durability than the previous fork-frame design.


Skid Steers / CTLs
Frame Width
With Steps 1730 mm (68.0 in.)
Less Steps 1520 mm (60.0 in.)
Frame Height 940 mm (37.0 in.)
Overall Length (frame and fork)
1067 mm (42 in.) N/A
1220 mm (48 in.) 1520 mm (60.0 in.)
1520 mm (60 in.) 1830 mm (72.0 in.)
Overall Weight (with 2 fork tines)
1067 mm (42 in.) N/A
1220 mm (48 in.) 359 kg (790 lb.)
1520 mm (60 in.) 388 kg (854 lb.)
Fork Thickness 50 mm (2 in.)
Fork Tine Load Rating at 600-mm
(24 in.) Load Center (1 pair of tines)*
4000 kg (8,800 lb.)
Vehicle Compatibility 330G and 332G Skid
Steers; and 331G and
333G CTLs

*Pallet fork capacity listed. Reference machine Operator’s Manual for machine capacity.
