John Deere NF44 Nursery Fork
Forks & Spears NF44 Nursery Fork
Overview:
Width: 1194 mm (47 in.)
Maximum Root Ball: 1118 mm (44 in.)
Fork Opening (Parallel): 457 mm (18 in.)
Share This Product:
Features

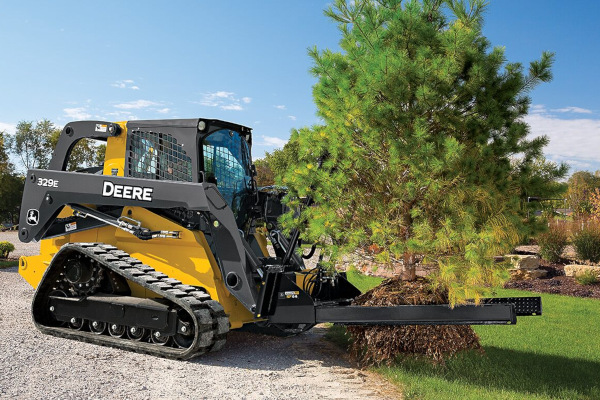

- Easily and effortlessly transport balled and burlapped trees or container stock up to 44 in. (1118 mm) in diameter as well as large rocks and light boulders.
- Third-function hydraulic-actuated arm that swings open and closed works in conjunction with stationary arm to pick up a variety of objects.
- 6 in. (152 mm) tread plate allows the arms to firmly grasp root balls, nursery pots, container boxes, or landscape rocks.
- versatile Quik-Tatch system enables hook-up and release in only seconds.
- Clean, simple tine design provides virtually unrestricted visibility forward and to the sides.
Specifications
| Model | NF44 |
| Width | 1194 mm (47 in.) |
| Height | 1549 mm (61 in.) |
| Length | 2184 mm (86 in.) |
| Fork Opening | |
| Minimum | 102 mm (4 in.) |
| Maximum | 1372 mm (54 in.) |
| Parallel | 457 mm (18 in.) |
| MaximuMaximum Root Ball | 1118 mm (44 in.) |
| Connection | |
| Hydraulic | 12.7-mm (0.5 in.) quick-connec |
| Electrical | None |
| Vehicle Compatibility | 316GR, 318G, 320G, 324G, 330G, and 332G SSLs;* 317G, 325G, 331G, and 333G CTLs;* and 204L, 244L, 304L, and 324L CWLs*† |
*Ride control recommended.
†Skid steer-style coupler required.
Pressure-Control Kit AT460780 available as a dealer-installed option reduces the risk of damage to
the tree ball or container by limiting hydraulic-cylinder pressure. If caution is used when clamping
objects, this kit is not required.
