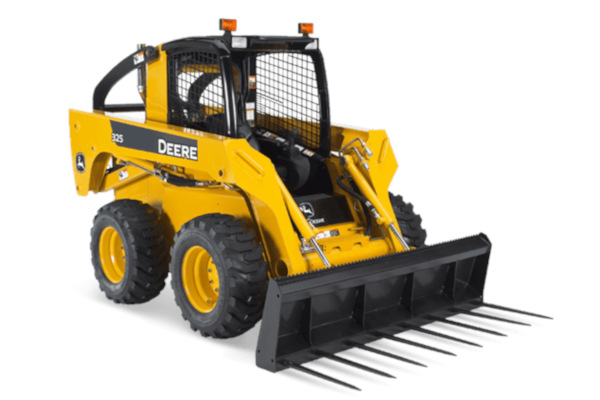

John Deere AF66 Ag Fork
Double tap to zoom
- Tines easily penetrate pen-packed material for quicker clean-out. Visibility to the tines is unrestricted.
- Bolt-on tines are easy to replace. Ag forks come equipped with standard 10.5 in. (267-mm) tine spacing.
|Model||AF66 Ag Fork|
|Number of Tines||7|
|Weight||395 lb. (179 kg)|
|Height||22 in. (561 mm)|
|Length||34 in. ( 864 mm)|
|Width||65 in. (1652 mm)|
|Tine Spacing||10.5 in. (267 mm)|
|Usable Length||25.3 in. (642 mm)|
|Vehicle Compatibility||312GR, 314G, 316GR, and 318E/G, 320E, and 324E Skid Steers; and 317G and 323E CTLs|
