John Deere AB31 Bale Spears

Features

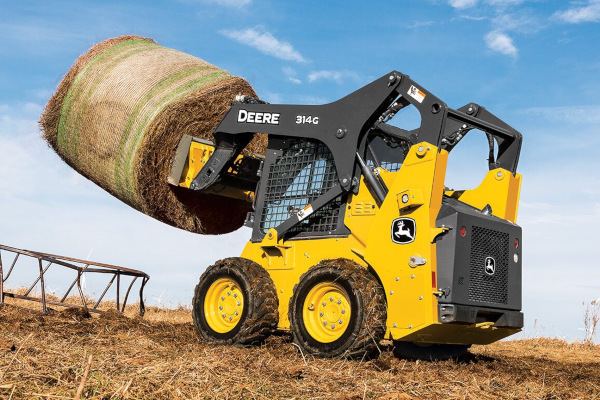

- Offering optimal rigidity and capacity, these new John Deere bale spears are built for a long working life and designed for the loading, carrying, and stacking of baled organic materials typically used for livestock feed and bedding in agricultural applications.
- Round bale spears are replaceable and come in three different configurations of single, dual, or triple to help match numerous bale-handling applications.
- Low-Profile design provides unrestricted visibility to the bale spear and tine tips.
- Square bale tine are retained with bolts and round bale tines are retained with cross-bolts, making both styles easy to replace.
- Quick-Tatch mounting provides quick and easy hookup removal
Specifications
Model | AB31 |
Description | Single Bale, Heavy Duty |
Capacity* at Load Center |
1361 kg (3,000 lb.) at 0.61 m (24 in.) |
Width | 1.24 m (48.75 in.) |
Height | 0.64 m (25.00 in.) |
Length | 1.42 m (55.75 m) |
Spear Length | 1.35 m (53.00 in.) |
Weight | 91 kg (200 lb.) |
Vehicle Compatibility |
312GR, 314G, 316GR, 318G, 320E, 324E, 330G, and 332G Skid Steers; 317G, 323E, 331G, and 333G CTLs; 204K, 244K-II, 304K, 324K, and 344K CWLs |
