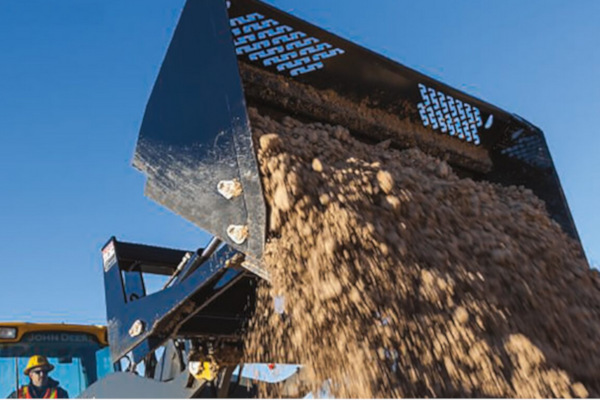

John Deere RB96 Rollout Bucket
Buckets RB96 Rollout Bucket
Overview:
Width: 2480 mm (97.5 in.)
Weight: 618 kg (1,360 lb.)
Heaped Capacity: 1.28 m3 (1.68 cu. yd.)
Share This Product:
Features
- Quality-manufactured Worksite Pro rollout buckets feature an open design that enables quick, clean, and easy material loading.
- Available in a range of three sizes, rollout buckets are ideal for achieving elevated dump heights in high-capacity applications, including construction, forestry, agriculture, demolition, recycling, and land management.
- Each model comes standard with a universal bolt-on cutting edge that is double beveled and reversible, for extended wear life.
- Industrial-strength, high-pressure cylinders are cushioned for smooth bucket operation and are constructed with induction-hardened, double chrome-plated rods for maximum durability.
Specifications
| Model | RB96 |
| Weight | 618 kg (1,360 lb.) |
| Width | 2480 mm (97.5 in.) |
| Height | 820 mm (32.3 in.) |
| Length | 1270 mm (50 in.) |
| Heaped Capacity | 1.28 m3 (1.68 cu. yd.) |
| Dump Reach | 860 mm (34 in.) |
| Dump Angle | 114 deg. |
| HYDRAULIC CYLINDER | |
| Pivot Pin Diameter | 38 mm (1.5 in.) |
| Bore Diameter | 64 mm (2.5 in.) |
| Rod Diameter | 38 mm (1.5 in.) |
| Maximum Operating Pressure | 25 000 kPa (3,625 psi) |
| BOLT-ON CUTTING EDGE | |
| Length | 200 mm (8.0 in.) |
| Thickness | 19 mm (0.75 in.) |
| Vehicle Compatibility | 330G and 332G SSLs; 331G and 333G CTLs; 204L, 244K-II, 304L, and 324K CWLs* |
