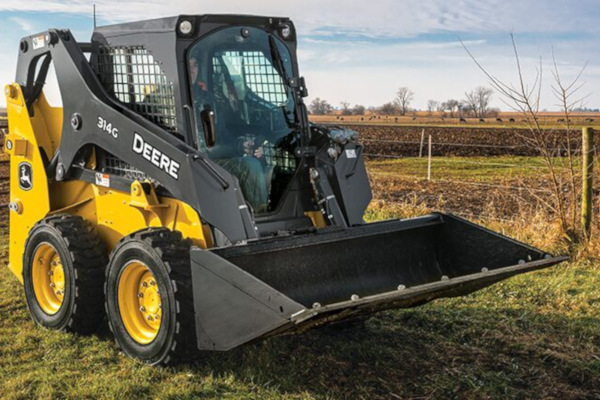

John Deere MP66B Multi-Purpose Bucket

Features
- Capable of bulldozing, scraping, loading, metering, and clamping material — it's ideal for a wide variety of applications.
- Low profile geometry allows superior visibility to the cutting edge, increasing efficiency
- Rugged torque tube equalizes load forces when clamping
- Heavy-duty design includes tough high-carbon cutting edges, wear resistant 1055 high-carbon steel at key wear points, precision cylinders with easy-to-service hardened rods. All pivot points are lubricated with grease fittings
- To further increase durability and performance, buckets are predrilled for optional bolt-on replaceable cutting edges and toothbars.
Specifications
Model | MP66B |
Operating Pressure | 15 513.2 kPa (2,250 psi) |
Clamping Force | 10 471 N (2,354 lb.) |
Overall Width | 1701 mm (67.0 in.) |
Overall Height | 694 mm (27.3 in.) |
Overall Length | 876 mm (34.5 in.) |
Clam Length | 586 mm (23.0 in.) |
Back-Blade Length | 314 mm (12.4 in.) |
Clam Opening | 880 mm (34.6 in.) |
Heaped Capacity | 0.5 m3 (15.8 cu. ft.) |
Weight | 281 kg (620 lb.) |
Cutting-Edge Dimensions (1055 high-carbon steel): |
|
Front Half (front) | 25.4 x 152 mm (1 x 6 in.) |
Front Half (rear) | 19 x 152 mm (0.75 x 6 in.) |
Cylinders | |
Bore | 51 mm (2.0 in.) |
Stroke | 191 mm (7.5 in.) |
Rod Diameter | 28 mm (1.1 in.) |
Connection | |
Hydraulic | 12.7-mm (0.5 in.) quick-connect couplers |
Electrical | None |
Vehicle Compatibility | 312GR, 314G, 316GR, 318G, 320G, and 324G SSLs; 317G CTL |
