John Deere BR84C Pick-Up Broom

New Equipment / John Deere / Compact Construction / Attachments / Brooms / BR84C Pick-Up Broom

Double tap to zoom

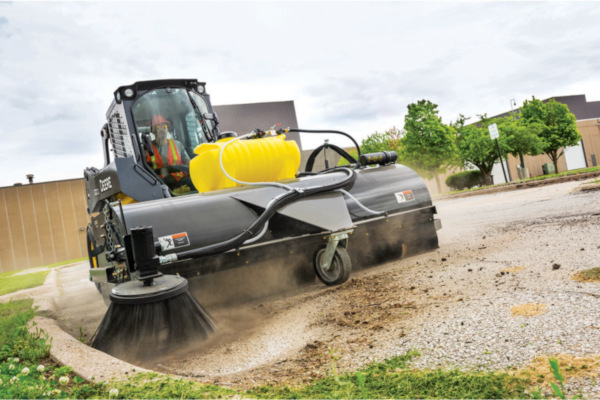

Pick-up brooms feature a 635-mm (25 in.)-diameter brush with 50/50 poly wire brush segments and a baffle to hold debris in bucket.
Heavy-duty, high-torque drive motor is coupled to the brush core through a 25.4-mm (1 in.) splined shaft.
Bolt adjustment on brush provides infinite height control.
Two-standard caster wheels (not on fixed brooms) allow for better balance and stability when sweeping.
During bristle replacement, the drive motor can be pulled from the brush core without disconnecting any hydraulic lines. This means less mess and cleanup, with little chance of hydraulic fluid contamination.
Optional gutter brush has adjustable flow to allow for different material applications and the ability to turn off when not in use.
Like all Worksite Pro attachments, these pick-up brooms are optimized to work with John Deere G- and E-Series Skid Steers and Compact Track Loaders (CTLs), and K-Series Compact Loaders. They're also compatible with many competitive models.

MODEL	BR84C
Weight	500 kg (1,090 lb.)
Overall Length	1550 mm (61 in.)
Overall Width	2370 mm (93 in.
Sweeping Width	2130 mm (84 in.)
Overall Height	790 mm (31 in.)
Hopper Capacity	0.6 m3 (20 cu. ft.)
Brush Diameter	660 mm (26 in.)
Core Diameter	200 mm (8 in.)
Number of Wafers	49
Minimum Hydraulic Flow	57 l/min. (15 gpm)
Maximum Hydraulic Flow	95 l/min. (25 gpm)
Motor Pressure Relief Setting	17 000 kPa (2,500 psi)
Broom-Mounted Water Tank
Water-Tank Capacity	95 L (25 gal.)
Pump Flow	7.9 l/min (2.1 gpm)
Roof-Mounted Water Tank
Water-Tank Capacity	114 L (30 gal.
Pump Flow	6.8 l/min. (1.8 gpm)
Vehicle Compatibility	312GR, 314G, 316GR, 318G, 320G, 324G, 330G, and 332G SSLs; 317G, 325G, 331G, and 333G CTLs; 204K, 244K-II, 304K, and 324K CWLs*

*Requires skid steer-style quick coupler for operation.
