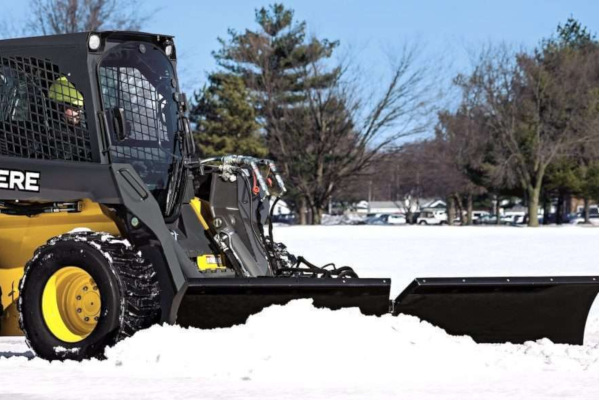

John Deere BV6 Snow/Utility V-Blade
Blades & Scrapers BV6 Snow/Utility V-Blade
Overview:
• Weight: 441 kg (972 lb.)
• Width: (Straight): 1880 mm (74 in.)
• Width: (V-Configuration): 1638 mm (64.5 in.)
Share This Product:
Features
The rugged design of these blades delivers maximum uptime in a wide variety of tasks – from stripping clay to finish grading. Snow/utility blades provide additional productivity in snow removal and light dirt work and the blade oscillates 5 degrees, right or left.
- Worksite Pro snow/utility V-blades provide multifunction versatility for snow removal and light dirt work.
- Blades angle hydraulically to four positions: straight for larger cuts, V-configuration for pushing through hard pack, scoop (both sides inward) for easy snow tacking, and 30 deg. right or left.
- Adjustable skid shoes for vertical blade productivity standard.
- Steel cutting edge is standard. Available rubber cutting edge helps prevent damage to decorative surfaces.
- Trip springs help protect the vehicle from sudden impacts with concealed obstacles and can be locked out for light grading and dirt work.
- Electrohydraulic (EH) valve for independent blade function is adjustable from the cab
- Top blade extension for extra carrying capacity is available
- Like all Worksites Pro Attachments, these V-blades are optimized to work with John Deere E-Series and 313/315 Skid Steers, E-Series Compact Track Loaders (CTLs), and K-Series Compact WHeel Loaders. They're also compatible; with many competitive models. See your local Deere dealer for details.
Specifications
| Model | BV6 |
| Width | |
| Straight | 1880 mm (74 in.) |
| V Configuration | 1638 mm (64.5) |
| Scoop | 1600 mm (63 in.) |
| 30-deg. Angle | 1626 mm (64 in.) |
| Height | 711 mm (28 in.) |
| Oscillation | +- 10 deg. |
| Operating Weight | 441 kg (972 lb) |
| Vehicle Compatibility | 313 and 315 skid steers |
