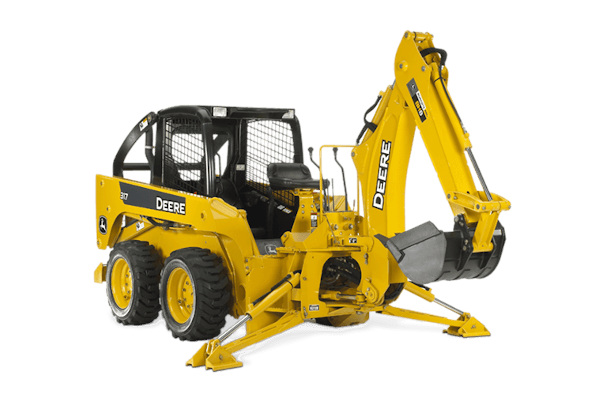

John Deere BH9 Backhoe
Backhoes BH9 Backhoe
Overview:
• Max Dig Depth: 110 in. (2795 mm)
• Transport Height: 100 in. (2550 mm)
• Loading Reach: 59 in. (1500 mm)
• Reach From Swing Pivot: 146 in. (3705 mm)
• Loading Height: 93 in. (2355 mm)
Share This Product:
Features
John Deere backhoes are ideal for light-duty ag or utility work.
- Swing speed control
- 180-deg. swing range maximize maneuverability in confined areas. Low-profile console enhances visibility.
- Cushioned cylinders smooth operation and limit shock loads. Two-lever boom/swing and dipperstick/bucket control allows precise attachment control.
- Dual-lock arms quickly and easily latch to the machine mainframe. Handy boom- and swing-lock levers enable secure transport.
- Heavy-duty buckets feature an easy cleanout design and a trio of linkage options that help increase curl, reach, and breakout force.
- Standard tilt-away seat and convenient grab handle ease cab entry and exit. Height and fore-and-aft seat adjustment helps boost operator comfort.
- Like all John Deere attachments, these backhoes are optimized to work with Deere SSLs and CTLs.
- They’re also compatible with many competitive models. See your local Deere dealer for details.
Specifications
| Backhoe | BH9B |
| Weight (without mounting bracket/bucket) | 465 kg (1,025 lb.) |
| Height | |
| Transport | 2550 mm (100 in.) |
| Loading | 2355 mm (93 in.) |
| Operating, Fully Raised | 3495 mm (138 in.) |
| Length | |
| Overall Transport | 2110 mm (83 in.) |
| Reach from Swing Pivot | 3705 mm (146 in.) |
| Loading Reach | 1500 mm (59 in.) |
| Digging Depth | |
| Maximum | 2795 mm (110 in.) |
| Digging (2 ft. Flat Bottom) | 2745 mm (108 in.) |
| Digging (8 ft. Flat Bottom) | 2235 mm (88 in.) |
| Straight Wall | N/A |
| Stabilizer Spread | |
| Transport | 1270 mm (50 in.) |
| Operating | 2285 mm (90 in.) |
| Bucket Rotation | 180 deg. |
| Swing Arc | 180 deg. |
| Hydraulics | |
| Minimum Hydraulic Flow | 34 gpm (9 L/min.) |
| Maximum Hydraulic Flow | 45 gpm (12 L/min.) |
| System Relief Pressure | 19 000 kPa (2,750 psi) |
| Digging Force - Bucket Cylinder | 1765 kg (3,895 lb.) |
| Digging Force - Dipperstick Cylinder | 1070 kg (2,358 lb.) |
| Connection | |
| Hydraulic | 12.7-mm (0.5 in.) |
| Electrical | quick-connect couplers NONE |
| Heavy-Duty Pin-On Buckets | |
| 18-in. Bucket with Teeth | |
| Heaped Capacity | 0.06 m3 (2.14 cu. ft.) |
| Weight | 45 kg (95 lb.) |
| Number of Teeth | 4 |
| 24-in. Bucket with Teeth | |
| Heaped Capacity | 0.09 m3 (3.10 cu. ft.) |
| Weight | 50 kg (115 lb.) |
| Number of Teeth | 5 |
| 36-in. Bucket with Teeth | |
| Heaped Capacity | 0.09 m3 (3.04 cu. ft.) |
| Weight | 65 kg (140 lb.) |
| Number of Teeth | 7 |
| Vehicle Compatibility* | 312GR, 314G, 316GR, and 318G SSLs; 317G CTL |
*Rear counterweight may improve stability during operation
