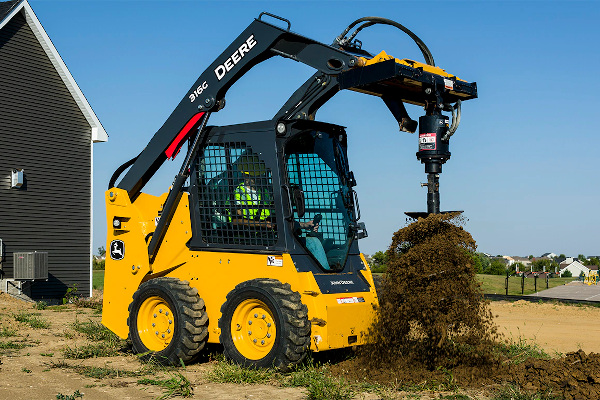

John Deere PA30B Planetary Drive Auger
Augers & Trenchers PA30B Planetary Drive Auger
Overview:
• Max Auger Bit Diameter: 36 in. (914 mm
• Min Hydraulic Flow: 14 gpm (53 L/min.)
• Max Hydraulic Flow: 30 gpm (114 L/min.)
Share This Product:
Features
Our auger attachments easily get to the bottom of things. The heavy-duty motor drives the auger through a planetary-gear reduction. Reverse rotation allows quick back-out when you encounter obstructions.
- New hydraulic motors have a higher-rated operating pressure and features a larger and more durable motor-shaft seal.
- New integral motor and planetary gearbox housing brings the planetary gear set closer to the motor, increasing efficiency and decreasing stress.
- Gearbox has an updated input shaft with a more sturdy design.
- Maximum torque rating for PA30B increased from 4,166 to 4,500 ft.-lb. and improved gear reduction. The number of planet gears in the PA30B gearbox increased from three to five.
- PA40 bit sizes include 4-36-in. HD, 9-24-in. HD difficult ground, 18-36 in, tree and shrub, and 9- or 12-in. rock to match the application.
- Like all worksite pro attachments, these augers are optimized to work with the John Deere skid steer loaders, compact track loaders (CTLs), compact excavators, and compact wheel loaders, and are compatible with most competitive models.
Specifications
| Model | PA30B |
| Weight (without mounting bracket) | 63kg (138 lbs.) |
| Motor Displacement | 240 cc/rev (14.9 cu. in./rev.) |
| Hydraulic Flow | Minimum: 57 L/min. (15 gpm) ; Maximum 114 L/min. (30 gpm) |
| Maximum Operating Pressure | 24 100 kPa (3,500 psi) |
| Planetary Gear Ratio | 4:4:1 |
| Planetary Maximum Torque Rating | 6100 Nm (4,500 ft.-lb.) |
| Output Shaft | 51-mm (2 in.) hexagon |
| Output Torque | 4130 Nm (3,044 ft.-lb.) |
| Output Speed | |
| 23L/min. (6 gpm) | — |
| 30 L/min. (8 gpm) | — |
| 38 L/min. (10 gpm): | — |
| 45 L/min. (12 gpm) | — |
| 57 L/min. (15 gpm) |
53 rpm |
| 68 L/min. (18 gpm) | 63 rpm |
| 76 L/min. (20 gpm) |
70 rpm |
| 106 L/min. (28 gpm) |
99 rpm |
| 114 L/min. (30 gpm) |
106 rpm |
| 124 L/min. (33 gpm) |
— |
| 136 L/min. (36 gpm) |
— |
| 148 L/min. (39 gpm) |
— |
| 159 L/min. (42 gpm) |
— |
| Maximum Auger Bit Diameter | 910 mm (36 in.) |
| Overall Auger Bit Length | 1220 mm (48 in.) |
| Vehicle Compatibility | 312GR, 314G, 316GR, 318G, 320E, 324E, 330G, and 332G Skid Steers; 317G; 323E, 331G, and 333G and 333G CTLs; 35G, 50G, and 60G Compact Excavators; and 204L, 244K-II, 304L, and 324K Compact Loaders |
