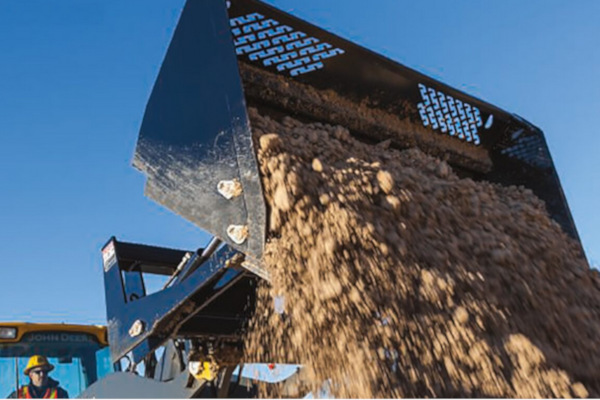

John Deere RB72 Rollout Bucket
Double tap to zoom
- Quality-manufactured Worksite Pro rollout buckets feature an open design that enables quick, clean, and easy material loading.
- Available in a range of three sizes, rollout buckets are ideal for achieving elevated dump heights in high-capacity applications, including construction, forestry, agriculture, demolition, recycling, and land management.
- Each model comes standard with a universal bolt-on cutting edge that is double beveled and reversible, for extended wear life.
- Industrial-strength, high-pressure cylinders are cushioned for smooth bucket operation and are constructed with induction-hardened, double chrome-plated rods for maximum durability.
|Weight||532 kg (1,170 lb.)|
|Width||1850 mm (73 in.)|
|Height||820 mm (32.3 in.)|
|Length||1270 mm (50 in.)|
|Heaped Capacity||0.91 m3 (1.19 cu. yd.)|
|Dump Reach||860 mm (34 in.)|
|Dump Angle||114 deg.|
|Pivot Pin Diameter||38 mm (1.5 in.)|
|Bore Diameter||64 mm (2.5 in.)|
|Rod Diameter||38 mm (1.5 in.)|
|Maximum Operating Pressure||25 000 kPa (3,625 psi)|
|BOLT-ON CUTTING EDGE|
|Length||200 mm (8.0 in.)|
|Thickness||19 mm (0.75 in.)|
|Vehicle Compatibility||312GR, 314G, 316GR, 318G, 320E,
and 324E SSLs; 317G and 323E CTLs
