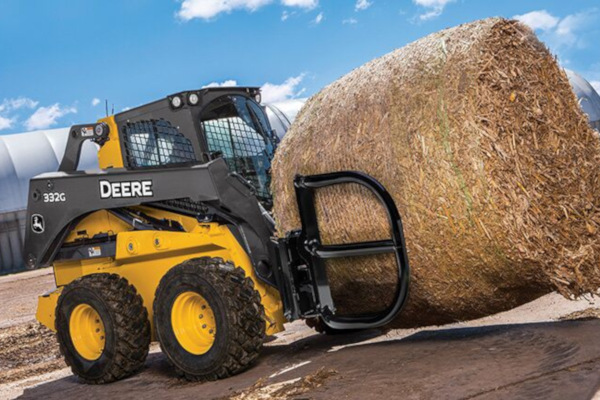

John Deere AH80 Bale Hugger
Ag Attachments AH80 Bale Hugger
Overview:
Max Opening: 279.40 cm (110 in.)
Lift Capacity: 1088.62 kg (2,400 lb.)
Weight: 217.72 kg (480 lb.)
Share This Product:
Features
- Designed for large round and rectangular bales. Maximum opening of 279.4 cm (110 in. ) squeezes bales together for transport, stacking, and loading.
- Round tubing delivers maximum durability and prevents damage to bale wrappings/coverings.
- Right- and left-hand arms open simultaneously and apply constant pressure, eliminating risk of dropped or damaged bales.
- Ideal for 453.6-kg (1,000 lb.) silage bags, with a maximum load of 1088.62 kg (2,400 lb.).
- Like all Worksite Pro™ attachments, the bale hugger is compatible with all John Deere skid steer loaders, compact track loaders (CTLs), and compact wheel loaders (CWLs) equipped with a skid-steer-style Quick-Tatch™ coupler.
Specifications
| MODEL | AH80 |
| Overall Width | 120.65 cm (47.5 in.) |
| Overall Height | 95.25 cm (37.5 in.) |
| Overall Depth | 137.16 cm (54.0 in.) |
| Maximum Opening | 279.40 cm (110.0 in.) |
| Lift Capacity | 1088.62 kg (2,400.0 lb.) |
| Operating Weight | 217.72 kg (480.0 lb.) |
| Vehicle Compatibility | 312GR, 314G, 316GR, 318G, 320E, 324E, 330G, and 332G Skid Steers; 317G, 323E, 331G, and 333G CTLs; and 204K, 244K-II, 304K, and 324K CWLs |
