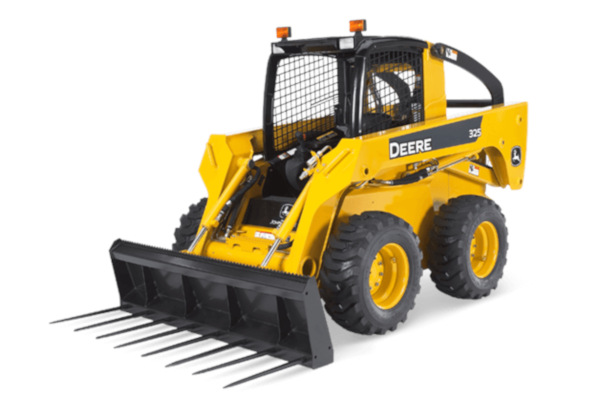

John Deere AF78 Ag Fork

Features
- Tines easily penetrate pen-packed material for quicker clean-out. Visibility to the tines is unrestricted.
- Bolt-on tines are easy to replace. Ag forks come equipped with standard 10.5 in. (267-mm) tine spacing.
Specifications
Model | AF78 Ag Fork |
Number of Tines | 8 |
Weight | 445 lb. (202 kg) |
Height | 22 in. (561 mm) |
Length | 34 in. ( 864 mm) |
Width | 77 in. (1956 mm) |
Tine Spacing | 10.5 in. (267 mm) |
Usable Length | 25.3 in. (642 mm) |
Vehicle Compatibility | 318E/G, 320E, 324E, 326E, 328E, and 330G Skid Steers; and 317G, 319E, and 323E CTLs |
