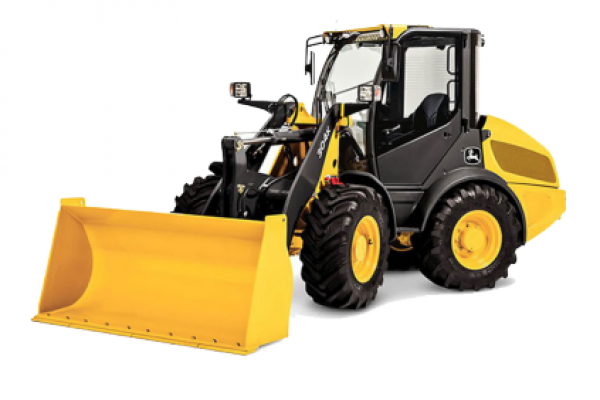

John Deere 304K
John Deere 304K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.
Under 2 cu. yd. Compact Loaders
- 3.3-L naturally aspirated diesel meets IT4 emission regulations without after-treatment devices.
- 2.47-m (8 ft.) overall height and 1.90-m (6 ft. 3 in.) width enable the loader to navigate low and narrow entryways.
- Standard canopy or optional air-conditioned/heated cab lets you choose the right operator environment for the job.
- Hydrostatic transmission's low and high ranges provide travel speeds to 20 km/h (12 mph).
- Oscillating front loader frame reduces operator station tilt for a more stable and ride.
- Limited-slip front and rear axles help improve traction when a tire starts to spin.
- Standard skid-style quick coupler and auxiliary hydraulics accommodate numerous attachments.
|Model||304 K Interim Tier 4|
|Emission Rating||Interim Tier 4|
|Displacement, ltr (Inches³)||3.3 (203)|
|Rated Speed, rpm||2400|
|Engine Output - Net, kW (hp)||48 (64)|
|Torque, Nm (lbf / ft)||239 (176) @ 1600 rpm|
|Tire size - Standard||405 / 70 R18 - Dunlop|
|Service Brake - Type||Wet Disc|
|Service Brake - Location||All Wheels|
|Service Brake - Actuation||Hydraulic|
|Parking Brake - Type||Wet Disc|
|Height - Over Cab, mm (ft/in)||2470 (8 ft )|
|Wheelbase, mm (ft/in)||2150 (7 ft 1 in)|
|Length - Including Bucket, mm (ft/in)||5520 (18 ft 1 in)|
|Ground clearance, mm (inches)||330 (13)|
|Width Over tires - Std mm, mm (ft/in)||1780 (5 ft 10 in)|
|Height - Pivot Pin, mm (ft/in)||3370 (11 ft 1 in)|
|Reach - At 2130mm 45° Dump, mm (ft/in)||1600 (5 ft 4 in)|
|Turning Circle - Maximum, mm (ft/in)||9110 (29 ft 11 in)|
|Fuel Tank, ltr (gallons (US))||50 (13.2)|
|Hydraulic Tank, ltr (gallons (US))||90 (23.8)|
|Axle - Front, ltr (gallons (US))||6 (1.6)|
|Axle - Rear, ltr (gallons (US))||6 (1.6)|
|Transmission, ltr (gallons (US))||1 (0.275)|
|Heaped Capacity, m³ (yd³)||0.8 (1)|
|Bucket Capacity - Smallest, m³ (yd³)||0.8 (1)|
|Largest bucket capacity, m³ (yd³)||1.6 (2.1)|
|Breakout - Bucket , kgf (lbf)||5370 (11839)|
|Ride Control System||No|
|System Voltage, V||12|
|Alternator Output, Amp||80|
|Pump Flow, lt/min (gallons (US) / min)||77 (20)|
|System Pressure, bar (PSI)||230 (3335)|
|Operating Weight, kg (lbs)||5796 (12778)|
|Dump Height mm, mm (ft/in)||2620 (8 ft 7 in)|
|Reach at Full Height mm, mm (ft/in)||930 (3 ft 1 in)|
|Tipping Load - Straight kg, kg (lbs)||4000 (9171)|
