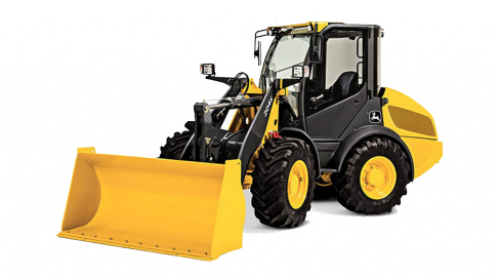

John Deere 204K

John Deere 204K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Edinboro, Fairmount City, and Stoneboro, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Under 2 cu. yd. Compact Loaders



  • 3.3-L naturally aspirated diesel meets IT4 emission regulations without after-treatment devices.
  • 2.45-m (7 ft. 11 in.) overall height and 1.90-m (6 ft. 3 in.) width enable the loader to navigate low and narrow entryways.
  • Standard canopy or optional air-conditioned/heated cab lets you choose the right operator environment for the job.
  • Hydrostatic transmission's low and high ranges provide travel speeds to 20 km/h (12 mph).
  • Oscillating front loader frame reduces operator station tilt for a more stable and ride.
  • Limited-slip front and rear axles help improve traction when a tire starts to spin.
  • Standard skid-style quick coupler and auxiliary hydraulics accommodate numerous attachments.
Manufacturer John Deere
Model 204 K Interim Tier 4
DRIVELINE
Engine Manufacturer  YANMAR
Engine Model  4TNV98
Emission Rating  Interim Tier 4
Displacement, ltr (Inches³)  3.3 (203)
Rated Speed, rpm  2200
Engine Output - Net, kW (hp)  44 (59)
Torque, Nm (lbf / ft)  239 (176) @ 1600 rpm
Transmission Type  Hydrostatic
Tire size - Standard  365 / 70 R18 - Dunlop
Service Brake - Type  Wet Disc
Service Brake - Location  All Wheels
Service Brake - Actuation  Hydraulic
Parking Brake - Type  Wet Disc
DIMENSIONS
Height - Over Cab, mm (ft/in)  2450 (7 ft 11 in)
Wheelbase, mm (ft/in)  2150 (7 ft 1 in)
Length - Including Bucket, mm (ft/in)  5420 (17 ft 4 in)
Ground clearance, mm (inches)  318 (12.5)
Width Over tires - Std   mm, mm (ft/in)  1750 (5 ft 10 in)
Height - Pivot Pin, mm (ft/in)  3180 (10 ft 5 in)
Reach - At 2130mm 45° Dump, mm (ft/in)  1490 (4 ft 11 in)
Turning Circle - Maximum, mm (ft/in)  8590 (28 ft 2 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))  50 (13.2)
Hydraulic Tank, ltr (gallons (US))  90 (23.8)
Axle - Front, ltr (gallons (US))  6 (1.6)
Axle - Rear, ltr (gallons (US))  6 (1.6)
Transmission, ltr (gallons (US))  1 (0.275)
Heaped Capacity, m³ (yd³)  0.8 (1)
Bucket Capacity - Smallest, m³ (yd³)  0.8 (1)
Largest bucket capacity, m³ (yd³)  1.1 (1.4)
Breakout - Bucket , kgf (lbf)  4170 (9190)
Ride Control System  No
System Voltage, V  12
Alternator Output, Amp  80
Pump Type  Gear
Pump Flow, lt/min (gallons (US) / min)  70 (18)
System Pressure, bar (PSI)  230 (3335)
WEIGHTS
Operating Weight, kg (lbs)  5355 (11806)
COMPARABLE BUILD
Dump Height   mm, mm (ft/in)  2430 (8 ft )
Reach at Full Height   mm, mm (ft/in)  920 (3 ft )
Tipping Load - Straight   kg, kg (lbs)  3700 (8157)
