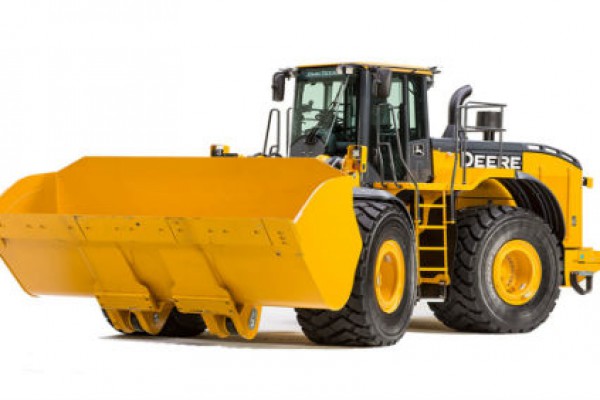

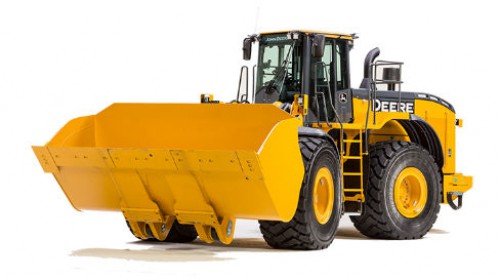

John Deere 844K III / NOT AVAILABLE

844K III for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Double tap to zoom



Features

Engine

  • Our FT4/Stage IV diesels employ field-proven cooled exhaust gas recirculation (EGR), easy-to-maintain high-uptime exhaust filters, and selective catalytic reduction (SCR).

Hydraulics

  • Increased hydraulic forces, engine power, and torque make quicker work of tough aggregate piles.
  • Hydraulic plumbing has been improved and articulation-joint and linkage pins enlarged to help boost productivity.
  • Bulkhead fittings eliminate long hoses, simplifying replacement and component exchange.
  • Hydraulic tank is positioned behind the cab for easy access, and hoses have been routed away from other vital operating components, for longer wear life.

Productivity

  • Bigger material-handling buckets reduce fill time in processed aggregates, better retain loads, and ultimately conserve fuel.
  • Low center of gravity and optimized fore-and-aft balance deliver solid stability and full-turn tipping-load capacities.
  • Transmission shift logic and programmable clutch cutoff have been improved, for increased productivity in a variety of conditions.

Serviceability and Uptime

  • Quad-Cool design places coolers in a unique boxed configuration that’s isolated from engine heat, for increased efficiency and durability.
  • Standard hydraulic reversing fan automatically reverses at predetermined intervals, or can be programmed through the monitor to eject debris from the cooler cores.
  • Color-coded fluid-sample and diagnostic test ports help speed preventative maintenance and troubleshooting.

Controls

  • With larger material-handling buckets, the aggregate handling option can load out 24 to 26 short tons of non-heaping, lower-density processed matter in just two passes. With heavier materials, achieving 12 to 13 tons is not a problem.
  • Spec the low-profile tire option to increase traction, flotation and stability.
  • New slip-resistant plates at the rear of the machine enable more sure-footed grip.
  • Slip-resistant steps, platforms, and handrails provide uninterrupted three-point access.

Specifications

MODEL John Deere 844K-III Wheel Loader
DRIVELINE
Engine Manufacturer John Deere
Engine Model PowerTech PSS 6135
Emission Rating Tier 4
Displacement, ltr (Inches) 13.5 (824)
Rated Speed, rpm 1600
Engine Output - Net, kW (hp) 283 (380)
Torque, Nm (lbf / ft) 1804 (1331)
Torque Rise, % 44
Transmission Type Powershift
Front Differential Type Open
Rear Differential Type Open
Tire size - Standard 875 / 65 R29
Service Brake - Type Wet Multi Disc
Service Brake - Location All Wheels
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc
DIMENSIONS
Height - Over Cab, mm (ft/in) 3760 (12 ft 4 in)
Wheelbase, mm (ft/in) 3700 (12 ft 2 in)
Length - Including Bucket, mm (ft/in) 9710 (31 ft 10 in)
Ground clearance, mm (inches) 463 (18.2)
Width Over tires - Std, mm (ft/in) 3408 (11 ft 2 in)
Height - Pivot Pin, mm (ft/in) 4620 (15 ft 2 in)
Reach - At 2130mm 45 Dump, mm (ft/in) 2270 (7 ft 5 in)
Turning Circle - Maximum, mm (ft/in) 15230 (50 ft )
CAPACITIES
Fuel Tank, ltr (gallons (US)) 534 (141)
Hydraulic Tank, ltr (gallons (US)) 184.3 (48.675)
Axle - Front, ltr (gallons (US)) 68 (18)
Axle - Rear, ltr (gallons (US)) 68 (18)
Transmission, ltr (gallons (US)) 28 (7.375)
Heaped Capacity, m (yd) 5.5 (7.25)
Bucket Capacity - Smallest, m (yd) 4.8 (6.3)
Largest bucket capacity, m (yd) 6.1 (8)
Breakout - Bucket , kgf (lbf) 21456 (47302)
Ride Control System Yes
System Voltage, V 24
Alternator Output, Amp 130
Pump Type Axial Piston Pump
Pump Flow, lt/min (gallons (US) / min) 548 (145)
System Pressure, bar (PSI) 241.32 (3500)
WEIGHTS
Operating Weight, kg (lbs) 33808 (74534)
COMPARABLE BUILD
Dump Height, mm (ft/in) 3280 (10 ft 9 in)
Reach at Full Height, mm (ft/in) 1460 (4 ft 9 in)
Tipping Load - Straight, kg (lbs) 25083 (55298)
