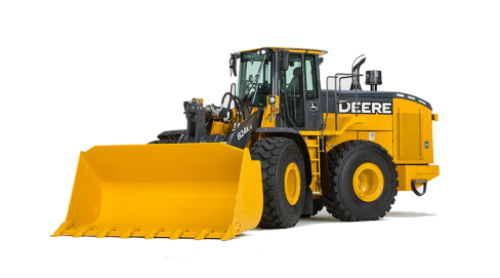

John Deere 824K-II

John Deere 824K-II for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, North Chili, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

Over 5 cu. yd. Production Loaders



  • Final Tier 4 engine
  • All-new heavier-duty axles
  • Fingertip or single-lever controls
  • Advanced onboard diagnostics
Manufacturer John Deere
Model 824K II Tier 4 Final
DRIVELINE
Engine Manufacturer  John Deere
Engine Model  PowerTech PSS 6135
Emission Rating  Tier 4
Displacement, ltr (Inches³)  13.5 (824)
Rated Speed, rpm  1500
Engine Output - Net, kW (hp)  248 (333)
Torque, Nm (lbf / ft)  1635 (1206)
Torque Rise, %  57
Transmission Type  Powershift
Tire size - Standard  26.5 R25 - Mcihelin
Service Brake - Type  Wet Disc
Service Brake - Location  All Wheels
Service Brake - Actuation  Hydraulic
Parking Brake - Type  Wet Multi Disc
DIMENSIONS
Height - Over Cab, mm (ft/in)  3550 (11 ft 8 in)
Wheelbase, mm (ft/in)  3460 (11 ft 4 in)
Length - Including Bucket, mm (ft/in)  9260 (30 ft 5 in)
Ground clearance, mm (inches)  462 (18.2)
Width Over tires - Std   mm, mm (ft/in)  3084 (10 ft 1 in)
Height - Pivot Pin, mm (ft/in)  4480 (14 ft 9 in)
Reach - At 2130mm 45° Dump, mm (ft/in)  2050 (6 ft 9 in)
Turning Circle - Maximum, mm (ft/in)  14200 (46 ft 7 in)
CAPACITIES
Fuel Tank, ltr (gallons (US))  477 (126)
Hydraulic Tank, ltr (gallons (US))  165 (43.7)
Axle - Front, ltr (gallons (US))  55.3 (14.6)
Axle - Rear, ltr (gallons (US))  55.3 (14.6)
Transmission, ltr (gallons (US))  27.9 (7.375)
Heaped Capacity, m³ (yd³)  4.6 (6)
Bucket Capacity - Smallest, m³ (yd³)  4.6 (6)
Largest bucket capacity, m³ (yd³)  5.2 (6.75)
Breakout - Bucket , kgf (lbf)  18718 (41266)
Ride Control System  Yes
System Voltage, V  24
Alternator Output, Amp  130
Pump Type  Axial Piston Pump
Pump Flow, lt/min (gallons (US) / min)  491 (130)
System Pressure, bar (PSI)  251.66 (3650)
WEIGHTS
Operating Weight, kg (lbs)  26880 (59260)
