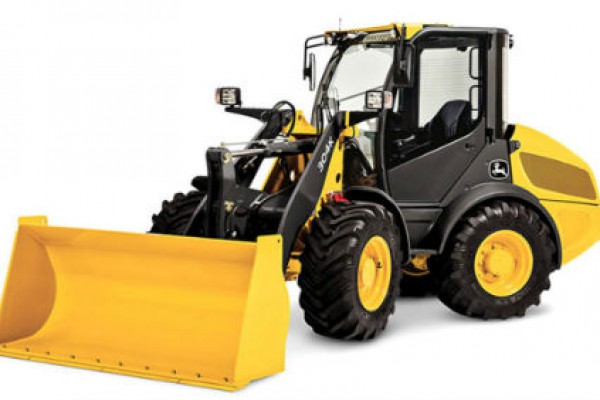

John Deere 304K / NOT AVAILABLE

Double tap to zoom



Features

Engine

  • Cooler cores are easily accessible for quick clean-out. Engine-mounted belt-driven cooling fan delivers efficient, reliable performance.



Compact Dimensions

  • 2.47-m (8 ft.) overall height and 1.90-m (6 ft. 3 in.) width enable the loader to navigate low and narrow entryways.
  • Low center of gravity and exceptional balance yield impressive stability and full-turn tipping-load capacities.
  • Precise parallel control over the entire lift range helps ease material handling.



Transmission

  • Hydrostatic transmission's low and high ranges provide travel speeds up to 20 km/h (12 mph).



Operator Comfort

  • Standard canopy or optional air-conditioned/heated cab lets you choose the right operator environment for the job.



Steering

  • Articulated steering delivers a tight turn radius for excellent close-quarters maneuverability and fast work cycles.



Attachments

  • The pushbutton-actuated skid-steer-style coupler lets an operator attach and release attachments quickly from the seat. What's more, the coupler doesn't require special adapters that reduce bucket breakout or rollback.



Easy Maintenance

  • Lockable easy-open tilting hoods provide convenient, ground-level access to daily checkpoints. Transverse-mounted engine provides convenient access to dipsticks and filler necks.

Specifications

MODEL John Deere 304K Wheel Loader
DRIVELINE
Engine Manufacturer YANMAR
Engine Model 4TNV98
Emission Rating Interim Tier 4
Displacement, ltr (Inches) 3.3 (203)
Rated Speed, rpm 2400
Engine Output - Net, kW (hp) 48 (64)
Torque, Nm (lbf / ft) 239 (176)
Transmission Type Hydrostatic
Front Differential Type Limited Slip - 45%
Rear Differential Type Open
Tire size - Standard 405 / 70 R18
Service Brake - Type Wet Disc / Drum
Service Brake - Location All Wheels
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc
DIMENSIONS
Height - Over Cab, mm (ft/in) 2470 (8 ft )
Wheelbase, mm (ft/in) 2150 (7 ft 1 in)
Length - Including Bucket, mm (ft/in) 5520 (18 ft 1 in)
Ground clearance, mm (inches) 330 (13)
Width Over tires - Std, mm (ft/in) 1790 (5 ft 11 in)
Height - Pivot Pin, mm (ft/in) 3370 (11 ft 1 in)
Turning Circle - Maximum, mm (ft/in) 9110 (29 ft 11 in)
CAPACITIES
Fuel Tank, ltr (gallons (US)) 50 (13.2)
Hydraulic Tank, ltr (gallons (US)) 90 (23.8)
Axle - Front, ltr (gallons (US)) 6 (1.6)
Axle - Rear, ltr (gallons (US)) 6 (1.6)
Transmission, ltr (gallons (US)) 1 (0.275)
Heaped Capacity, m (yd) 0.8 (1)
Bucket Capacity - Smallest, m (yd) 0.8 (1)
Largest bucket capacity, m (yd) 1.6 (2.1)
Breakout - Bucket , kgf (lbf) 5370 (11839)
System Voltage, V 12
Alternator Output, Amp 80
Pump Type Gear
Pump Flow, lt/min (gallons (US) / min) 77 (20)
System Pressure, bar (PSI) 230 (3335)
WEIGHTS
Operating Weight, kg (lbs) 5796 (12778)
COMPARABLE BUILD
Dump Height, mm (ft/in) 2620 (8 ft 7 in)
Reach at Full Height, mm (ft/in) 930 (3 ft 1 in)
Tipping Load - Straight, kg (lbs) 4000 (9171)
