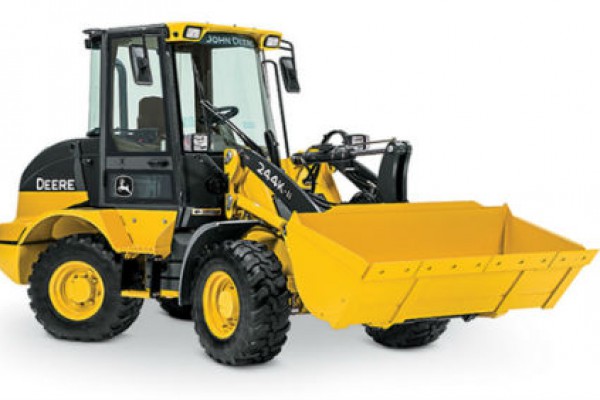

John Deere 244K II / NOT AVAILABLE

Double tap to zoom



Features

Engine

  • Hydraulically driven fan runs only as needed for efficient cooling, reduced noise, and lower fuel consumption.



Boom

  • Boom float allows easy back dragging for finish grading and cleaning up jobsites.



Steering & Controls

  • Unique stereo steering makes this compact loader even more productive, for tight turns and extra agility in close quarters.
  • 100-percent front differential lock is easily activated through a pushbutton on the joystick. Manual low-speed differential lock delivers the traction needed to go deeper into the pile for bigger bucket loads. Unlike comparable-size machines, return-to-dig is standard.



Attachments

  • The optional pushbutton-activated skid-steer-style coupler that lets you connect and release attachments quickly, without tools or leaving the seat.

Specifications

MODEL John Deere 244K-II Wheel Loader
DRIVELINE
Engine Manufacturer Yanmar
Engine Model 4TNV98CT
Emission Rating Tier 4
Displacement, ltr (Inches) 3.3 (203)
Rated Speed, rpm 2400
Engine Output - Net, kW (hp) 52 (70)
Torque, Nm (lbf / ft) 279 (206)
Transmission Type Hydrostatic
Front Differential Type Locking
Rear Differential Type Open
Tire size - Standard 365 / 70 R18
Service Brake - Type Wet Disc / Drum
Service Brake - Location All Wheels
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc
DIMENSIONS
Height - Over Cab, mm (ft/in) 2720 (8 ft 11 in)
Wheelbase, mm (ft/in) 2150 (7 ft 1 in)
Length - Including Bucket, mm (ft/in) 5280 (17 ft 4 in)
Ground clearance, mm (inches) 294.64 (11.6)
Width Over tires - Std, mm (ft/in) 1890 (6 ft 2 in)
Height - Pivot Pin, mm (ft/in) 3200 (10 ft 6 in)
Turning Circle - Maximum, mm (ft/in) 7570 (24 ft 10 in)
CAPACITIES
Fuel Tank, ltr (gallons (US)) 80 (21.1)
Hydraulic Tank, ltr (gallons (US)) 55 (14.5)
Axle - Front, ltr (gallons (US)) 4 (1.075)
Axle - Rear, ltr (gallons (US)) 4 (1.075)
Transmission, ltr (gallons (US)) 0.7 (0.2)
Heaped Capacity, m (yd) 0.8 (1)
Bucket Capacity - Smallest, m (yd) 0.8 (1)
Largest bucket capacity, m (yd) 1.1 (1.4)
Breakout - Bucket , kgf (lbf) 4895 (10792)
Ride Control System Optional
System Voltage, V 12
Alternator Output, Amp 80
Pump Type Gear
Pump Flow, lt/min (gallons (US) / min) 67 (17)
System Pressure, bar (PSI) 230 (3335)
WEIGHTS
Operating Weight, kg (lbs) 5470 (12060)
COMPARABLE BUILD
Dump Height, mm (ft/in) 2550 (8 ft 4 in)
Reach at Full Height, mm (ft/in) 817.88 (2 ft 8 in)
Tipping Load - Straight, kg (lbs) 4065 (8962)
