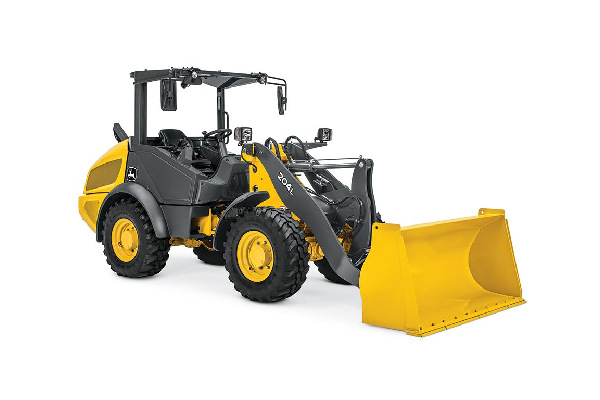

John Deere 204L

Double tap to zoom



Features

Convenient Controls

  • Boom, bucket, F-N-R and now 3rd-function hydraulic controls are positioned on the same ergonomic low-effort lever for convenient one-hand control.



Low Profile

  • At just 8-ft. tall, our L-Series Compacts deliver lower clearance than many wheel loaders in their class.



Multitasking

  • With a top speed of 12 mph, and up to 3-ft. 1-in. reach and 8-ft. 7-in. dump clearance, our L-Series Compacts are great for loading trucks or placing pallets on trailers.



Power

  • EPA Final Tier 4 (FT4)/EU Stage IIIB diesels meet rigid emission standards and pack plenty of power and torque reserve.



Simple to Service

  • Easy-access vertical filters and environmental drains make fluid changes quick and clean.

Specifications

DRIVELINE

Engine Manufacturer YANMAR
Engine Model 4TNV98
Emission Rating Tier 4
Displacement, ltr (Inches³) 3.3 (203)
Rated Speed, rpm 2200
Engine Output - Net, kW (hp) 45 (61)
Torque, Nm (lbf / ft) 239 (176)
Transmission Type Hydrostatic
Front Differential Type Limited Slip - 45%
Rear Differential Type Limited Slip - 45%
Tire size - Standard 365 / 70 R18
Service Brake - Type Wet Disc & Drum
Service Brake - Location Driveline
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc

DIMENSIONS

Height - Over Cab, mm (ft/in) 2450 (7 ft 11 in)
Wheelbase, mm (ft/in) 2150 (7 ft 1 in)
Length - Including Bucket, mm (ft/in) 5420 (17 ft 4 in)
Ground clearance, mm (inches) 318 (12.5)
Width Over tires - Std, mm (ft/in) 1760 (5 ft 9 in)
Height - Pivot Pin, mm (ft/in) 3180 (10 ft 5 in)
Reach - At 2130mm 45° Dump, mm (ft/in) 1490 (4 ft 11 in)
Turning Circle - Maximum, mm (ft/in) 8600 (28 ft 2 in)

CAPACITIES

Fuel Tank, ltr (gallons (US)) 50 (13.2)
Hydraulic Tank, ltr (gallons (US)) 90 (23.8)
Axle - Front, ltr (gallons (US)) 6 (1.6)
Axle - Rear, ltr (gallons (US)) 6 (1.6)
Transmission, ltr (gallons (US)) 1 (0.275)
Heaped Capacity, m³ (yd³) 0.8 (1)
Bucket Capacity - Smallest, m³ (yd³) 0.8 (1)
Largest bucket capacity, m³ (yd³) 1.1 (1.4)
Breakout - Bucket , kgf (lbf) 4170 (9190)
Ride Control System Optional
System Voltage, V 12
Alternator Output, Amp 80
Pump Type Gear
Pump Flow, lt/min (gallons (US) / min) 70 (18)
System Pressure, bar (PSI) 230 (3335)

WEIGHTS

Operating Weight, kg (lbs) 5355 (11806)
