John Deere 204K / NOT AVAILABLE

Double tap to zoom




  • Cooler cores are easily accessible for quick clean-out. Engine-mounted belt-driven cooling fan delivers efficient, reliable performance.


Compact Dimensions

  • 2.45-m (7 ft. 11 in.) overall height and 1.90-m (6 ft. 3 in.) width enable the loader to navigate low and narrow entryways.
  • Low center of gravity and exceptional balance yield impressive stability and full-turn tipping-load capacities.
  • Precise parallel control over the entire lift range helps ease material handling.



  • Hydrostatic transmission's low and high ranges provide travel speeds up to 20 km/h (12 mph).


Operator Comfort

  • Standard canopy or optional air-conditioned/heated cab lets you choose the right operator environment for the job.



  • Articulated steering delivers a tight turn radius for excellent close-quarters maneuverability and fast work cycles.



  • The pushbutton-actuated skid-steer-style coupler lets an operator attach and release attachments quickly from the seat. What's more, the coupler doesn't require special adapters that reduce bucket breakout or rollback.


Easy Maintenance

  • Lockable easy-open tilting hoods provide convenient, ground-level access to daily checkpoints. Transverse-mounted engine provides convenient access to dipsticks and filler necks.

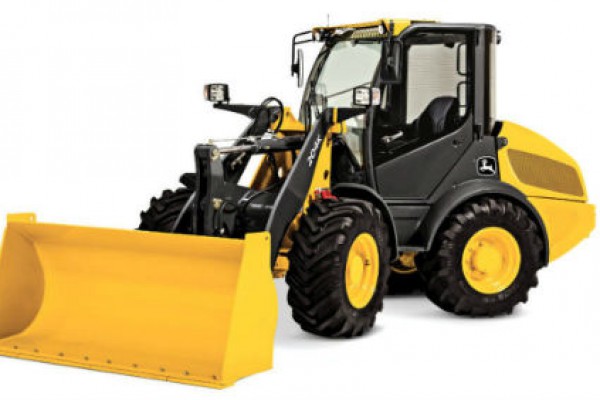

MODEL John Deere 204K Wheel Loader
Engine Manufacturer YANMAR
Engine Model 4TNV98
Emission Rating Interim Tier 4
Displacement, ltr (Inches) 3.3 (203)
Rated Speed, rpm 2200
Engine Output - Net, kW (hp) 44 (59)
Torque, Nm (lbf / ft) 239 (176)
Transmission Type Hydrostatic
Front Differential Type Limited Slip - 45%
Rear Differential Type Open
Tire size - Standard 365 / 70 R18
Service Brake - Type Wet Disc / Drum
Service Brake - Location All Wheels
Service Brake - Actuation Hydraulic
Parking Brake - Type Wet Disc
Height - Over Cab, mm (ft/in) 2450 (7 ft 11 in)
Wheelbase, mm (ft/in) 2150 (7 ft 1 in)
Length - Including Bucket, mm (ft/in) 5420 (17 ft 4 in)
Ground clearance, mm (inches) 318 (12.5)
Width Over tires - Std, mm (ft/in) 1760 (5 ft 9 in)
Height - Pivot Pin, mm (ft/in) 3180 (10 ft 5 in)
Turning Circle - Maximum, mm (ft/in) 8590 (28 ft 2 in)
Fuel Tank, ltr (gallons (US)) 50 (13.2)
Hydraulic Tank, ltr (gallons (US)) 90 (23.8)
Axle - Front, ltr (gallons (US)) 6 (1.6)
Axle - Rear, ltr (gallons (US)) 6 (1.6)
Transmission, ltr (gallons (US)) 1 (0.275)
Heaped Capacity, m (yd) 0.8 (1)
Bucket Capacity - Smallest, m (yd) 0.8 (1)
Largest bucket capacity, m (yd) 1.1 (1.4)
Breakout - Bucket , kgf (lbf) 4170 (9190)
System Voltage, V 12
Alternator Output, Amp 80
Pump Type Gear
Pump Flow, lt/min (gallons (US) / min) 70 (18)
System Pressure, bar (PSI) 230 (3335)
Operating Weight, kg (lbs) 5355 (11806)
Dump Height, mm (ft/in) 2430 (8 ft )
Reach at Full Height, mm (ft/in) 920 (3 ft )
Tipping Load - Straight, kg (lbs) 3700 (8157)
