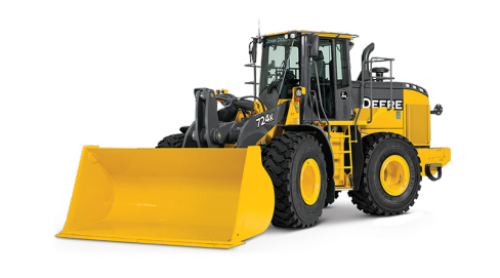

John Deere 724K

John Deere 724K for sale at LandPro Equipment; NY, OH & PA. Serving your new and used equipment needs from Alexander, Avon, Brockport, Clymer, Falconer, Hall, Macedon, Niagara Falls, Oakfield, Savannah, Springville, NY, and East Palestine, OH, and Centre Hall, Edinboro, Fairmount City, Halifax, Harrisburg, Mifflintown, Stoneboro, and Watsontown, PA.

Would you like more information from LandPro Equipment? Request A Quote Here

3.0 - 4.75 cu. yd. Medium Loaders


  • Final Tier 4 emission-certified engine
  • Countershaft-type PowerShift™ transmission
  • Z-Bar and High-Lift configurations
John Deere
Model 724K   WH Interim Tier 4
Engine Manufacturer  John   Deere
Engine Model  PowerTech™   Plus 6090H
Emission Rating  Interim   Tier 4
Displacement, ltr (Inches³)  9   (548)
Rated Speed, rpm  1800
Engine Output - Net, kW (hp)  197   (264)
Torque, Nm (lbf / ft)  1159   (852) (@ 1300 rpm)
Torque Rise, %  36
Transmission Type  Powershift
Tire size - Standard  23.5   R25
Service Brake - Type  Wet   Disc
Service Brake - Location  Axle   Inboard
Service Brake - Actuation  Hydraulic
Parking Brake - Type  Wet   Multi Disc
Height - Over Cab, mm (ft/in)  3470   (11 ft 5 in)
Wheelbase, mm (ft/in)  3260   (10 ft 8 in)
Overall length inc std bucket, mm (ft/in)  7990   (26 ft 3 in)
Ground clearance std tire, mm (inches)  516   (20)
Width Over tires - Std, mm (ft/in)  2875   (9 ft 5 in)
Height - Pivot Pin, mm (ft/in)  4210   (13 ft 10 in)
Reach - At 2130mm 45° Dump, mm (ft/in)  1530   (5 ft )
Turning Circle - Maximum, mm (ft/in)  13260   (43 ft 6 in)
Fuel Tank, ltr (gallons (US))  352   (93)
Hydraulic Tank, ltr (gallons (US))  110   (29)
Axle - Front, ltr (gallons (US))  22   (5.75)
Axle - Rear, ltr (gallons (US))  22   (5.75)
Transmission, ltr (gallons (US))  24   (6.25)
Std bucket cap heaped, m³ (yd³)  3.8   (5)
Smallest bucket capacity, m³ (yd³)  3.8   (5)
Largest bucket capacity, m³ (yd³)  5.4   (7)
Breakout force std bucket, kgf (lbf)  15636   (34471)
System Voltage, V  24
Alternator Output, Amp  80
Pump Type  Axial   Piston Pump
Pump Flow, lt/min (gallons (US) / min)  310   (82)
System Pressure, bar (PSI)  252   (3650)
Operating Weight, kg (lbs)  22200   (48988)
